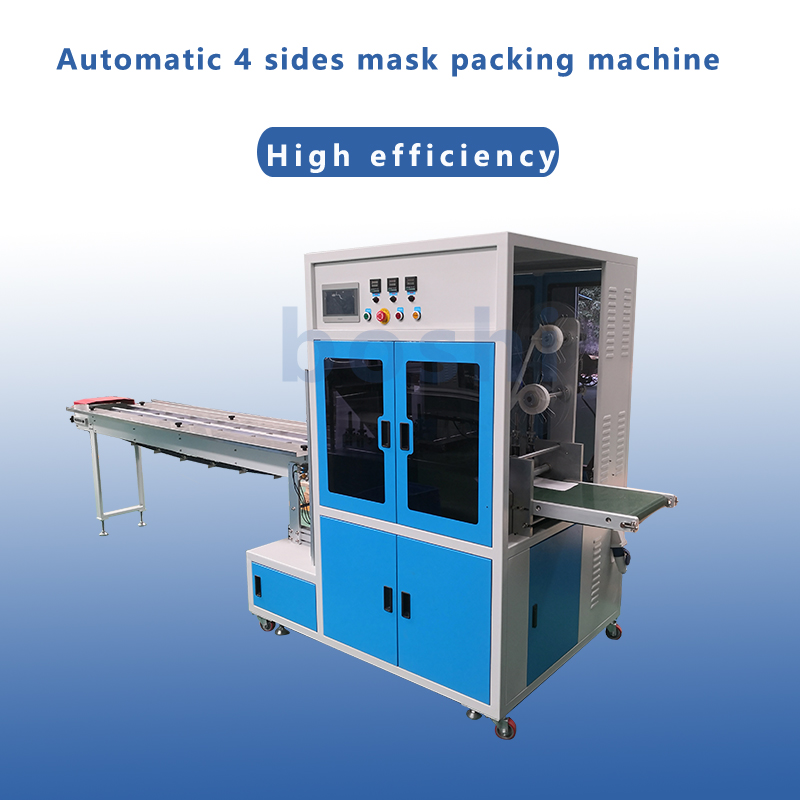

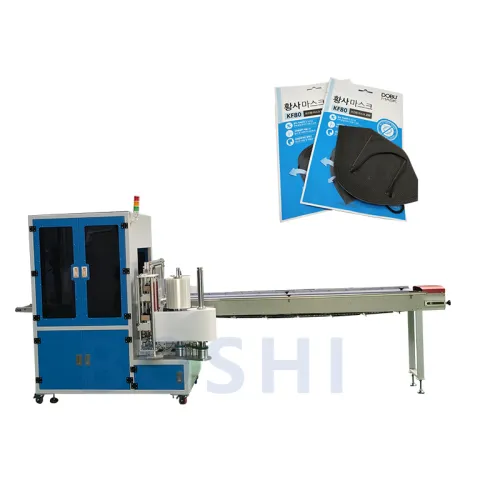

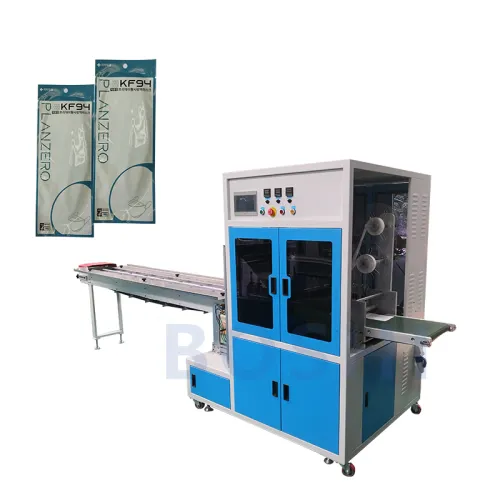

4 sides sealing dust-proof flat mask packing machine | Boshi pack automatic 4 sides sealing dust disposable mask packer


1)The servo motor version, high speed output, stable operation, saving time and film.
2)Interface features easy and quick setting and operation.
3)Self failure diagnosis, clear failure display.
4)High sensitivity photoelectric eye color tracing, numerical input of cutting sealing position for extra accuracy.
5)Temperature independent PID control, more suitable for packaging different materials.
6)Positioned stop function, without sticking knife or wasting film.
7)Simple driving system, reliable working, convenient maintenance.
8)All control is realized through software, easy for function adjusting and technical upgraded.

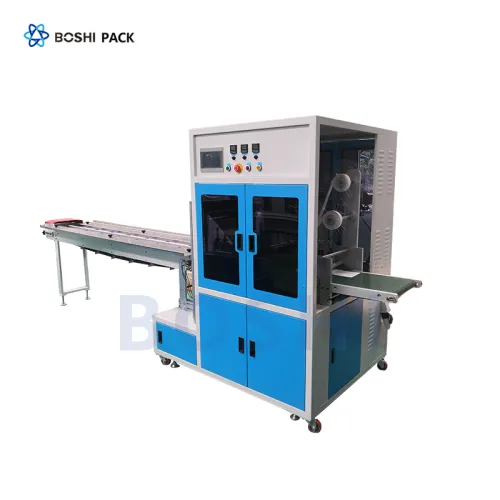

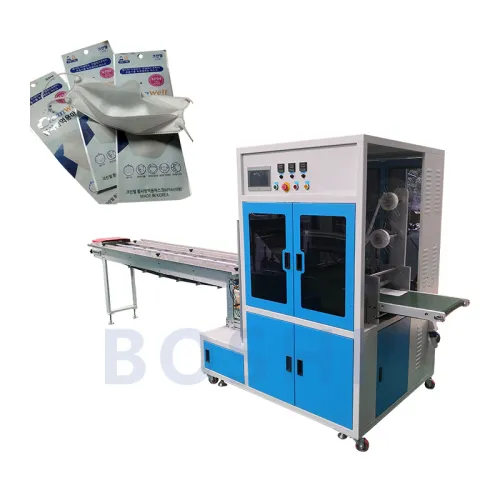

Boshi pack automatic 4 sides sealing dust disposable mask packer







4 sides mask packing machine advantage.



Material types of roll film.

(such as laminated film, ((PET/ PE, OPP/CPP,OPP/ CE)), paper.



Certifications.
CE, ISO, Google partner, Alibaba partner, and Chinese government certifications.



Packing and Shipping.
(Standard export wooden cases.)
Model BS-350
Film width Max.350mm
Film thickness 0.03-0.1mm
Bag width 50-140 mm
Bag length 90-220mm
Product height 40-60 mm
Packing speed 40-180 bags/ min
Power 2.2 KW
Machine dimensions 4020*770*1450 mm
Machine weight 680 kg
Option devices Date printer, hole puncher, label machine
Packing film materials OPP, CPP, OPP/PE, PET/ PE, Aluminum, and etc.
Air consumption ≥30 m³/ h
Air pressure 0.6-0.8 Mpa
