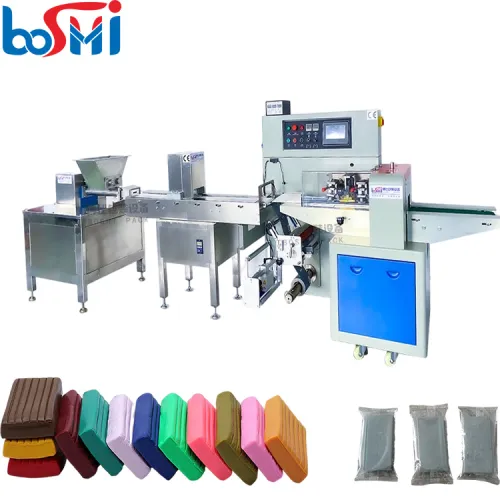

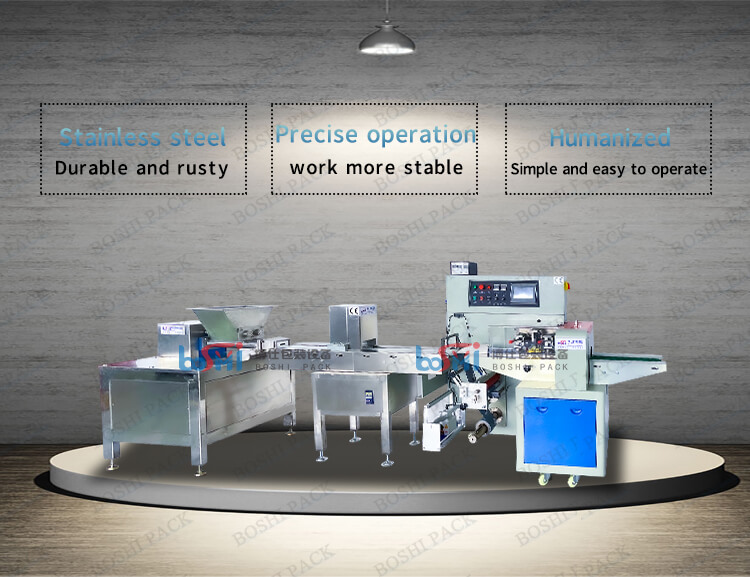

Fully automatic extruding plasticine packing machine wholesale price

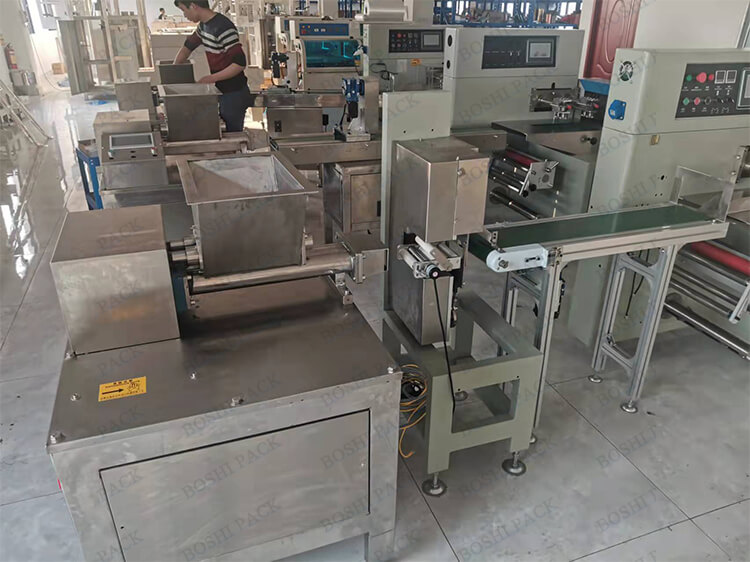

Full automatic production line with 2 in 1 functions( extruding and packing functions)
Reduce manual operation and avoid touching products, no pollution and deformation
Easy operation and clean
High speed for cutting and packing
Accurate length cutting
Stable performance
With patent
Easy operation and clean
Use different cutting knife for different product
2 touch screens (extruder & packing machine) for convenient operation
Fit for different product length
Fully automatic extruding plasticine packing machine wholesale price

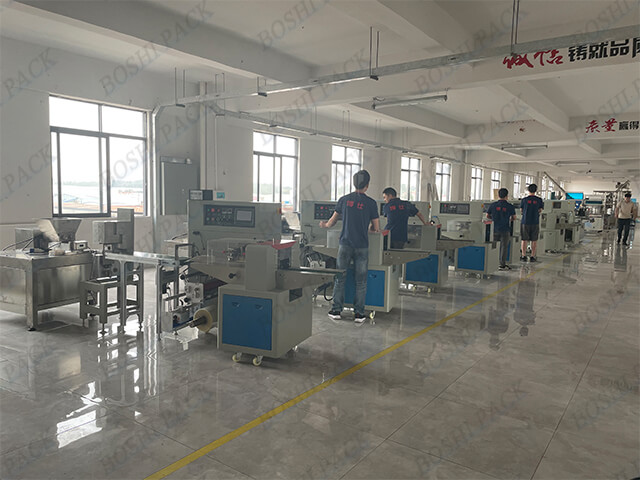

We're Clay extuder and packing machine manufature in China
Welcome to contact us,we will give you professional service.

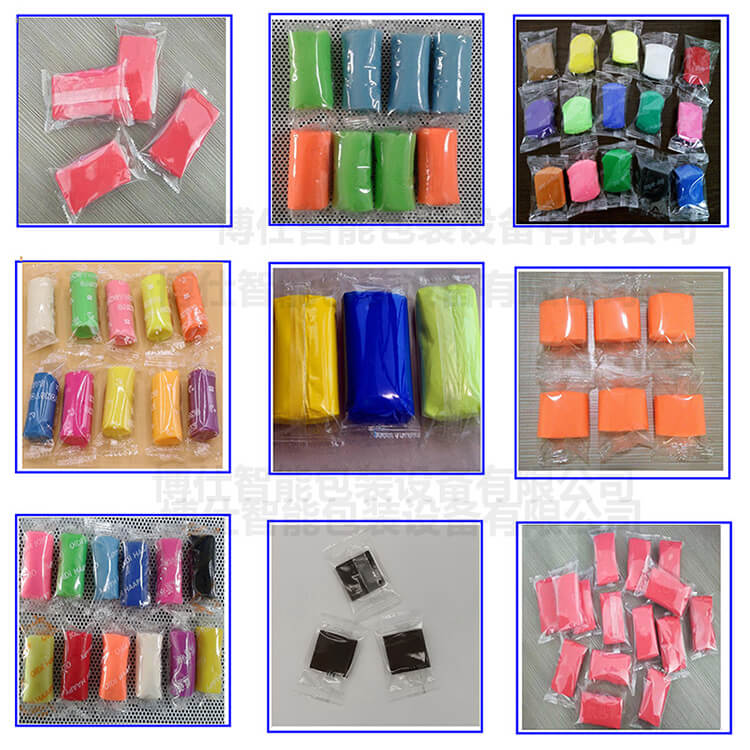

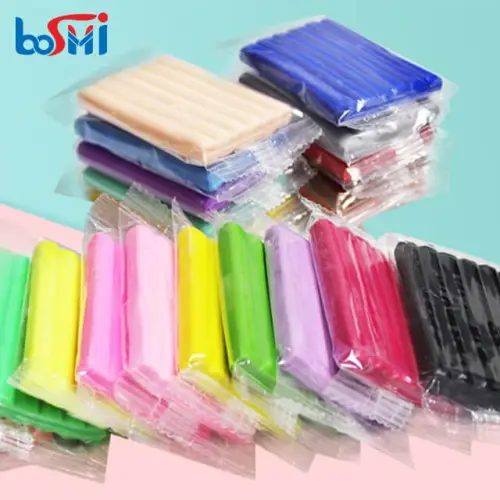

Suitable for packing the play clay,play dough,color mud, light clay,fondant, sealant, fire mud, and etc.
* 2 touch screens (for extruder & packing machine)to make two machine can work
* Contact parts use food grade SUS304 stainless steel,save and clean.
* Reduce manual operation and avoid touching products, no pollution and deformation.
* Accurate length cutting, high gram precision.
* Machine with stable performance,easy operation.
* Independent PLC temperature control, good for different packing film sealing.
* With auto alarm function,any alarm will show on touch screen.
Machine details:

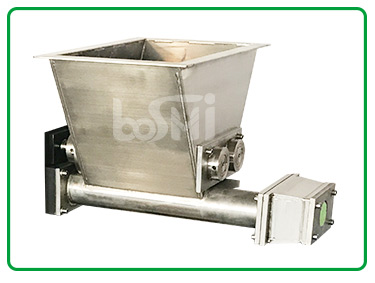

Extruder hopper
This picture including extrude hopper+mixing screws+extrude
screws+extrude mould

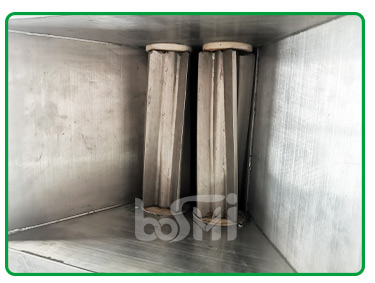

Mixing screws
*Can stir all the soft materials to extrude tube.
*Use thickness sus304
With strong engulfing ability
![300x200](/attachment/67/source/_50625.jpg)

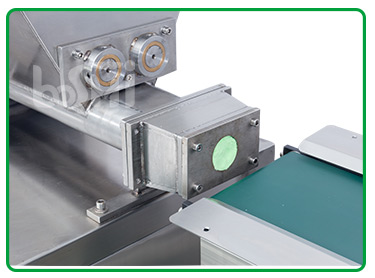

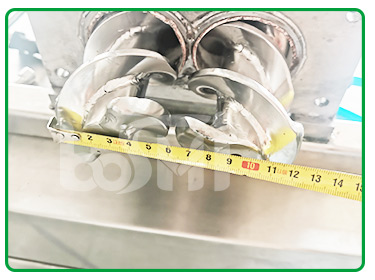

Double extruder screws
Look here!! We use double extrude screws, not single screw!
*.Increase extrusion capacity, high efficiency
*.Increase stability and ensure product quality
*.Suitable for multiple products
*Can according to your item width to make bigger
![300x200](/attachment/67/source/_50626.jpg)
Extruder head
*Use stainless steel 314 extruder mold.
*Support to make square shape , round shape and pattern shape.
*Easy to change different size extruder head
![300x200](/attachment/67/source/_50627.jpg)

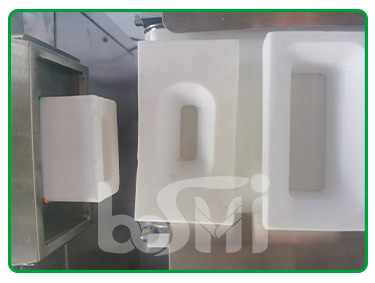

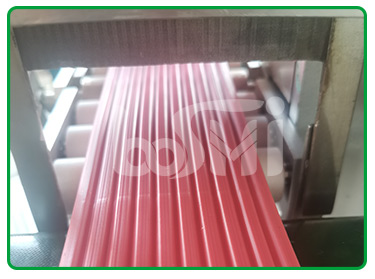

Extruder head
*Use food grade extruder mould
*Support to make square/round shape and pattern shape
*Easy to change different size extruder head
![300x200](/attachment/67/source/_50628.jpg)
Play dough/clay /material cutter
Each material will be have it's own cutter.
Some material is sticky ,then will have teflon cutter.
We will according to your material to match suitable cutter to you.
![300x200](/attachment/67/source/_50629.jpg)

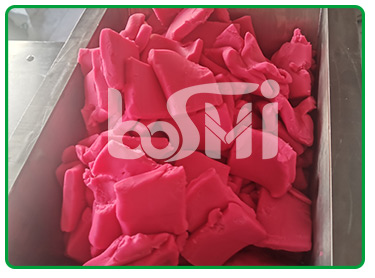

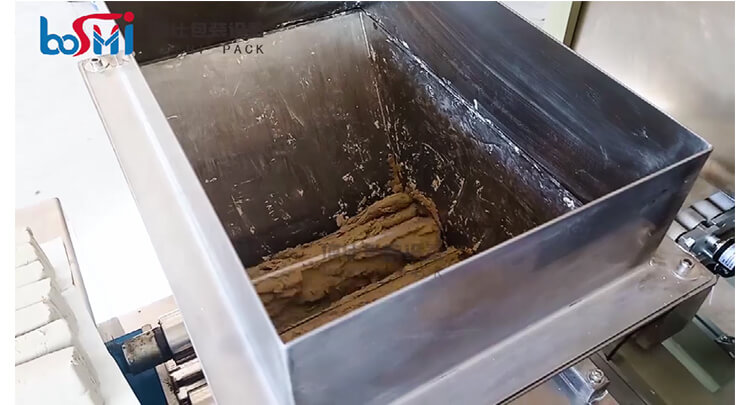

Extruder hopper
Just need to put your items in this hopper, machine will auto
stir and extrude the shape you need.
![300x200](/attachment/67/source/_50630.jpg)

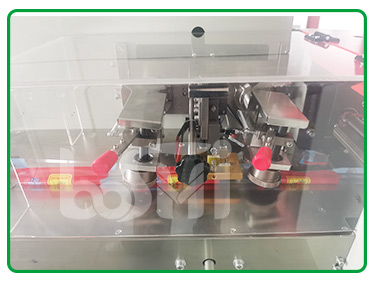

End Seal Cutter Area
*Constant temperature heat sealing cutter is used to seal the front and rear ends of packaging products.
*Angle inserting device is selected to make the bag beautiful and avoid curling at the sealing position.
![300x200](/attachment/67/source/_50631.jpg)

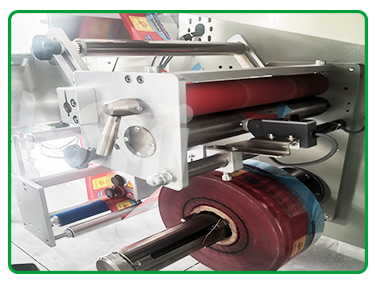

Mid- sealing structure
* With pulling film wheels+high quality copper +pressing wheels
*After this part , back bag sealing well.
![300x200](/attachment/67/source/_50632.jpg)
Install Film structure
*Motor Control Film Structure
*High quality grinding rollers,Pull evenly,more beautiful packaging
*Film position can be easily adjusted by hand shank
Model | BS-350XL |
Film width | Max.350mm |
Film thickness | 0.03-0.1mm |
Bag width | 50-160 mm |
Bag length | 65-190 mm, 90-220mm, or 150-330 mm |
Product height | 40-60 mm |
Packing speed | 40-180 bags/ min |
Power | 7 KW |
Machine dimensions | 4020*770*1450 mm |
Machine weight | 1100 kg |
Option devices | Date printer, hole puncher, label machine |
Packing film materials | OPP, CPP, OPP/PE, PET/ PE, Aluminum, and etc. |
