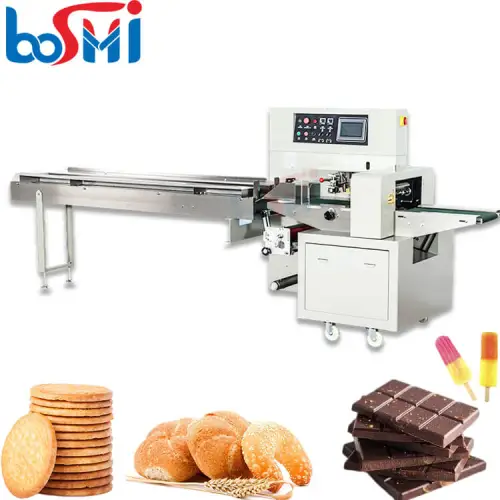

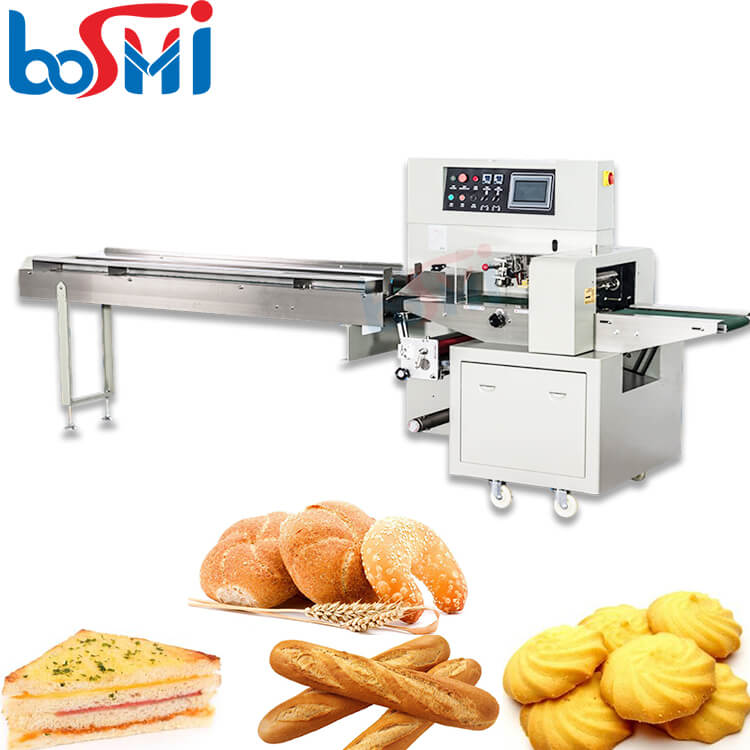

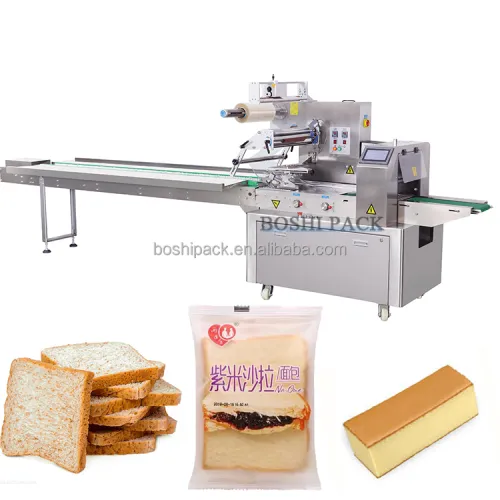

Hot sales automatic Bakery bread bag pillow packing machine cake bread long bread packaging machine
The advantage of the servo driven automatic bread packing machine
1)Three servo motor version, high speed output, stable operation, saving time and film.
2)Interface features easy and quick setting and operation.
3)Self failure diagnosis, clear failure display.
4)High sensitivity photoelectric eye color tracing, numerical input of cutting sealing position for extra accuracy.
5)Temperature independent PID control, more suitable for packaging different materials.
6)Positioned stop function, without sticking knife or wasting film.
7)Simple driving system, reliable working, convenient maintenance.
8)All control is realized through software, easy for function adjusting and technical upgraded.
Please note:
We are the factory supplier of bread packing machine in China, We have more than 15 years experience in this filed, of course we must have rich experience to make best packing solution depends on our products for you. One packing and more packing together is ok,welcome to contact us ,we will gice you professional service.
Hot sales automatic Bakery bread bag pillow packing machine cake bread long bread packaging machine
<You may like>
Model | BS-350X |
BS-450X |
BS-600X |
Packing speed |
20-180 Bags/min |
30-150 Bags/min |
30-150 Bags/min |
Support bag size |
L(65-330)×W(50-165)×H(5-60)mm |
L(130-450)×W(50-215)×H(5-75)mm |
L(130-450)×W(50-215)×H(5-75)mm |
Bag type |
Pillow bag(back seal) |
Pillow bag(back seal) |
Pillow bag(back seal) |
Film width | ≤350mm |
≤450mm |
≤600mm |
Film thickness range |
30-80um |
30-80um |
30-80um |
Power |
220V 50HZ,2.6KW |
220V 50HZ,2.8KW |
220V 50HZ,3KW |
Motor configuration |
Full servo motors |
Full servo motors |
Full servo motors |
Cutter moving type |
Rotary cutter |
Rotary cutter |
Rotary cutter |
Machine color |
White/Red/Blue |
White/Red/Blue |
White/Red/Blue |
Machine material |
Frame-carbon steel,contact parts--stainless steel SUS304 |
Frame-carbon steel,contact parts--stainless steel SUS304 |
Frame-carbon steel,contact parts--stainless steel SUS304 |
Feeding conveyor |
Chain /belt/pusher |
Chain /belt/pusher |
Chain /belt/pusher |
Machine dimension |
3770*770*1450 mm |
4020*820*1450 mm |
4020*920*1450 mm |
Machine weight |
580 kg |
680 kg |
750 kg |
