Boshi Pack automatic 1 kg powder packing machine
The feature of the automatic 1 kg powder packing machine
1)The servo motor version, high speed output, stable operation, saving time and film.
2)Specific powder counting system controlled by servo motor.

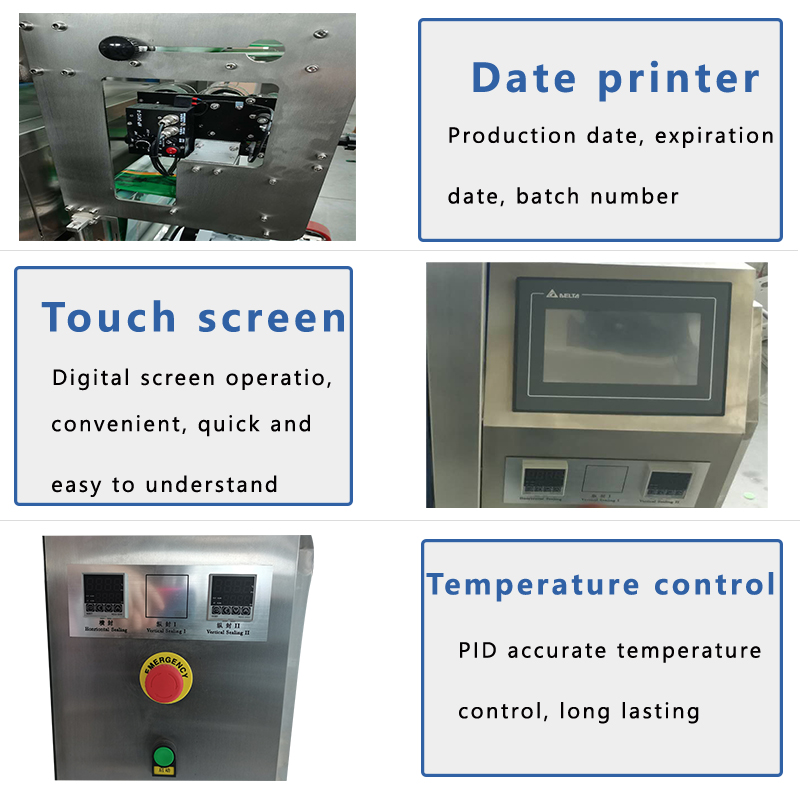

3)Interface features easy and quick setting and operation.
4)High sensitivity photoelectric eye color tracing, numerical input of cutting sealing position for extra accuracy.

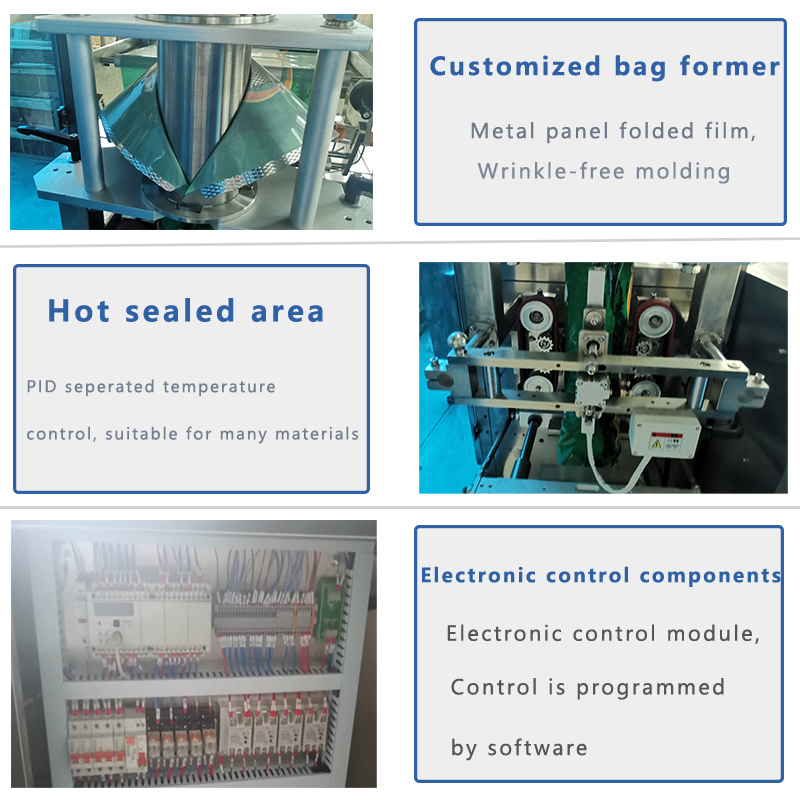

5)Temperature independent PID control, more suitable for packaging different materials.
6)Positioned stop function, without sticking knife or wasting film.

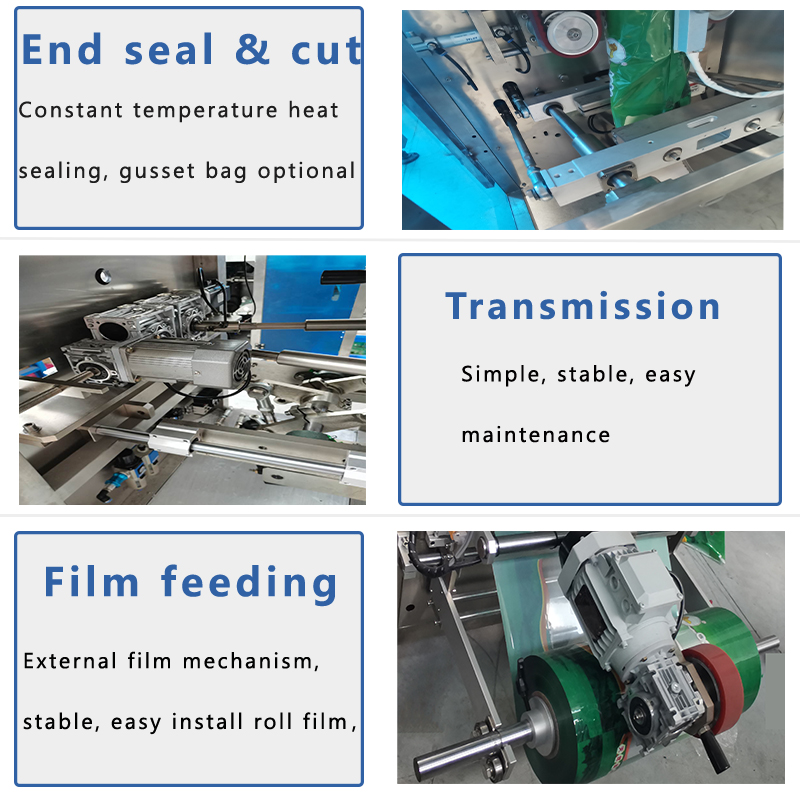

7)Simple driving system, reliable working, convenient maintenance.
8)All control is realized through software, easy for function adjusting and technical upgraded.
Suitable for packing coffee powder, wheat flour, milk powder, spice powder, protein powder, and etc.
(such as laminated film, ((PET/ PE, OPP/CPP,OPP/ CE)), paper.
coffee powder packing machine
coffee powder packing machine
CE, ISO, Google partner, Alibaba Verified Golden partner, and Chinese government certifications.
(Standard export wooden cases.)
| Packing Machine | |
| Model | BS-420 |
| Film width | Max.420mm |
| Film thickness | 0.03-0.1mm |
| Bag width | 50-200 mm |
| Bag length | 50-300mm |
| Packing speed | 10-70 bags/ min |
| Power | 2.2 KW |
| Air/ gass consumption | 0.65 Mpa, 0.3 m³/ min |
| Machine weight | 600 kg |
| Dimensions | 1080(L)* 1300(W)1400(H) mm |
| Packing film materials | OPP, CPP, OPP/PE, PET/ PE, Aluminum, and etc. |

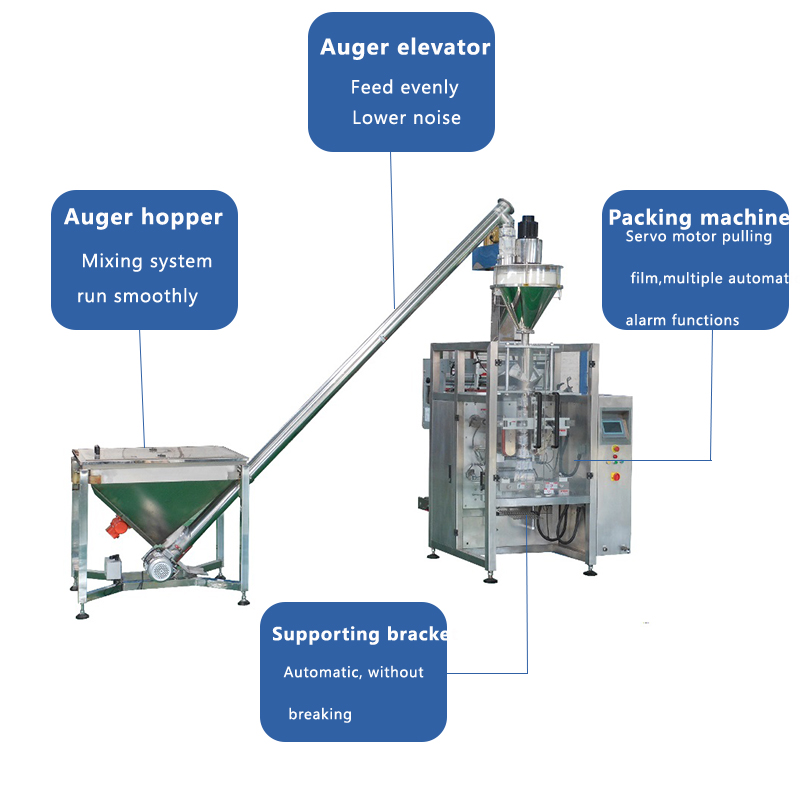

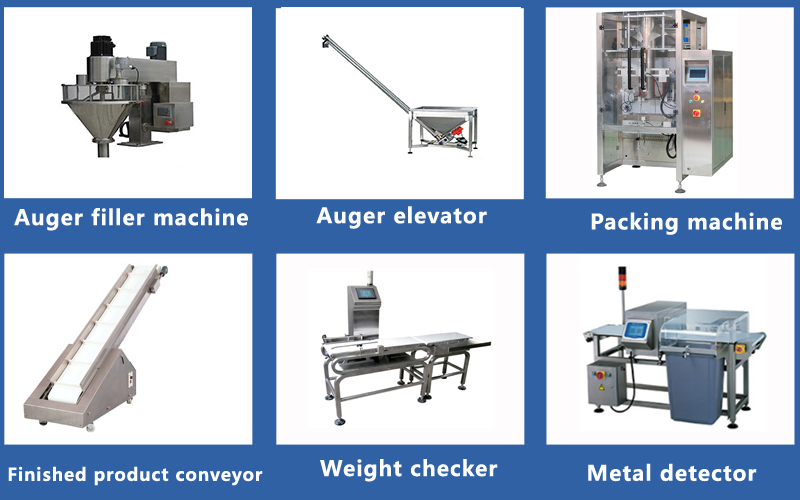

| Auger filler machine | |
| Powder filling weight | 10-5000 g |
| Filling accuracy | 0.1g-1.5 g |
| Filling rate | 40-120 times/ min |
| Power supply | 3P/ 220V-415V 50/60 HZ |
| Total power | 1.9 KW |
| Total weight | 200 kg |
| Over dimension | (L)1060*(W)600*(H)1100 mm |
| Auger elevator | |
| Charging capacity | 3 CBM/ H |
| Power supply | 810 W |
| Diameter of pipe | Φ114 mm |
| Hopper volume | 180 L |
| Power supply | 3P 208-415V 50-60HZ |
| Total weight | 130 kg |
| Overall dimension | (L)1023*(W)823*(H)870 mm (adjustable) |
