Boshi Pack CE 100g automatic ice cream powder packing machine

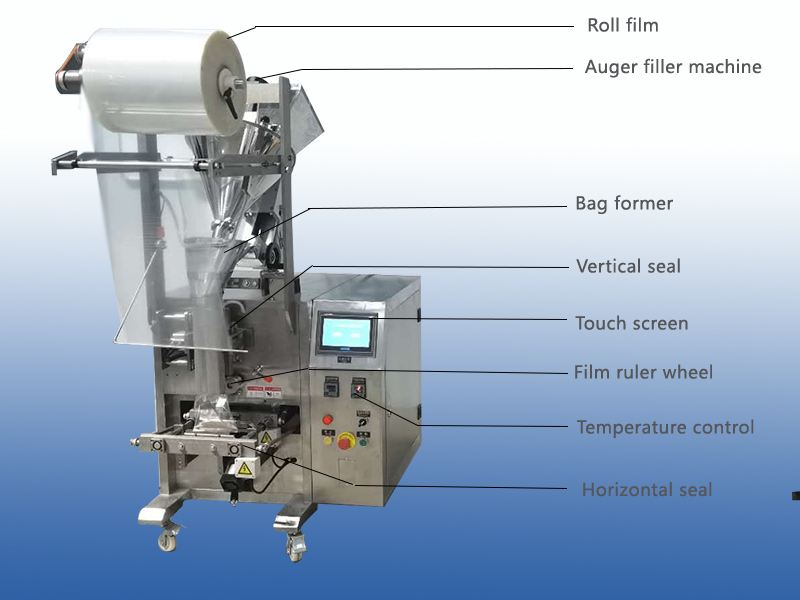

The feature of the automatic ice cream powder packing machine
1)High precision structure for simple and easy to operation and repair.
2)PLC touch screen, step motor control, easy and accurate to set the bag length.
3)Its owns simple circuity and outstanding function.
4)The machine complete the whole procedure of filling, bagging, date printing, charging(exhausting) automatically.
5)Selecte device: Linked bags device.
6)High sensitivity photoelectric eye color tracing, numerical input of cutting sealing position for extra accuracy.
7)Temperature independent PID control, more suitable for packaging different materials.
8)Positioned stop function, without sticking knife or wasting film.
9)Simple driving system, reliable working, convenient maintenance.
10)All control is realized through software, easy for function adjusting and technical upgraded.

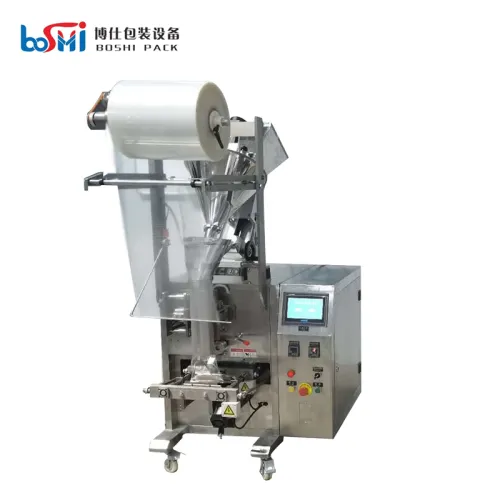

Boshi Pack CE 100g automatic ice cream powder packing machine
Material types of roll film.
(such as laminated film, ((PET/ PE, OPP/CPP,OPP/ CE)), paper.
CE, ISO, Google partner, Alibaba partner, and Chinese government certifications.
(Standard export wooden cases.)
Model | BS-320 |
Film width | Max.320mm |
Film thickness | 0.03-0.1mm |
Bag width | 50-150 mm |
Bag length | 50-200mm |
Film roll diameter | Max. 300mm |
Packing speed | 35-70 bags/ min |
Power | 2.2 KW |
Machine weight | 300 kg |
Dimensions | 970(L)* 680(W)1950(H) mm |
Packing film materials | OPP, CPP, OPP/PE, PET/ PE, Aluminum, and etc. |
