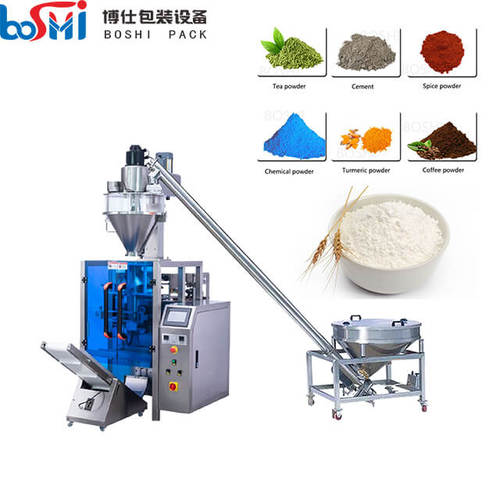

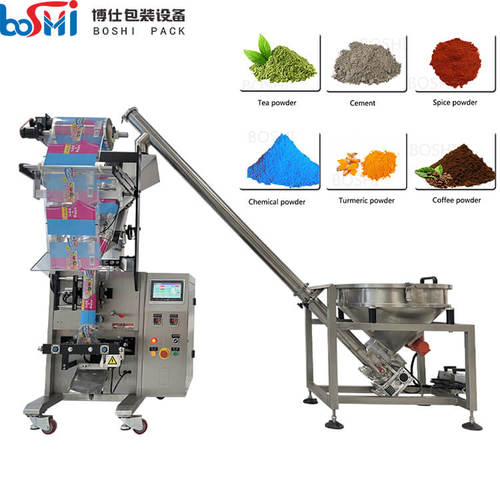

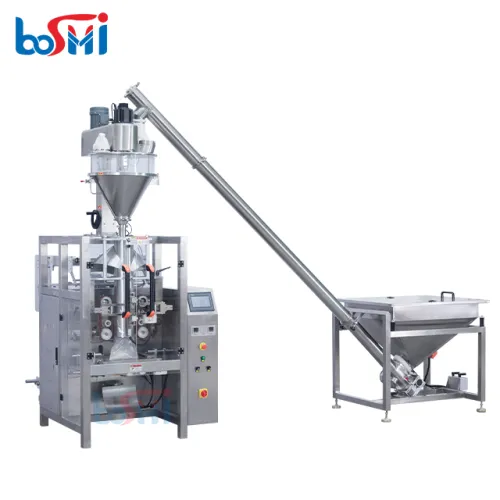

Boshi pack CE 500g 1kg automatic corn flour packing machine
1)The servo motor version, high speed output, stable operation, saving time and film.
2)Specific powder counting system controlled by servo motor.
3)Interface features easy and quick setting and operation.
4)High sensitivity photoelectric eye color tracing, numerical input of cutting sealing position for extra accuracy.
5)Temperature independent PID control, more suitable for packaging different materials.
6)Positioned stop function, without sticking knife or wasting film.
7)Simple driving system, reliable working, convenient maintenance.
8)All control is realized through software, easy for function adjusting and technical upgraded.
Applications:
Suitable for packing coffee powder, wheat flour, milk powder, spice powder, protein powder, and etc.
Product advantages：
1. The machine use high precision servo film transport system, PLC Program Control, developed touchable Human-machine Interface of Advanced Automatic Positioning, Photoelectric Tracking, Digital Temperature Control,etc.
2. Operation is more simple, perfect. It is the first choice of food packaging industry to Improve the production efficiency,reduce Labor Intensity, improve the grade of packaging equipment.
3. Bag end + middle back sealing temperature control independently, suitable for pure PE, CPP/OPP, BOPP/CPP, PE/polyethylene, PE/aluminum plating, pet/PE, PP, and other heat-sealing packaging materials.
4. It completes the whole procedure of filling, measuring, bagging, date printing, charging(exhausting), product out-putting automatically.
5. High precision, high efficiency without crash the materials.
6. Packaging style diversified, back sealing, gusset bag, string bags, punching, etc.
7. Work environment quiet, low noise, saving energy.
8. A complete set of equipment is economical.
<You may like>
| Model | BS-420 |
| Film width | Max.420mm |
| Film thickness | 0.03-0.1mm |
| Bag width | 50-200 mm |
| Bag length | 50-300mm |
| Packing speed | 10-70 bags/ min |
| Power | 2.2 KW |
| Air/ gass consumption | 0.65 Mpa, 0.3 m³/ min |
| Machine weight | 600 kg |
| Dimensions | 1080(L)* 1300(W)1400(H) mm |
| Packing film materials | OPP, CPP, OPP/PE, PET/ PE, Aluminum, and etc. |
