Boshi Pack CE auto powder packing machine for wheat flour coffee

The feature of the automatic powder packing machine
1)The servo motor version, high speed output, stable operation, saving time and film.
2)Specific powder counting system controlled by servo motor.
3)Interface features easy and quick setting and operation.
4)High sensitivity photoelectric eye color tracing, numerical input of cutting sealing position for extra accuracy.
5)Temperature independent PID control, more suitable for packaging different materials.
6)Positioned stop function, without sticking knife or wasting film.
7)Simple driving system, reliable working, convenient maintenance.
8)All control is realized through software, easy for function adjusting and technical upgraded.




Boshi Pack CE auto powder packing machine for wheat flour coffee


Suitable for packing coffee powder, wheat flour, milk powder, spice powder, protein powder, and etc.
auto powder packing machine
auto powder packing machine




auto powder packing machine

  auto powder packing machine


auto powder packing machine


auto powder packing machine

auto powder packing machine

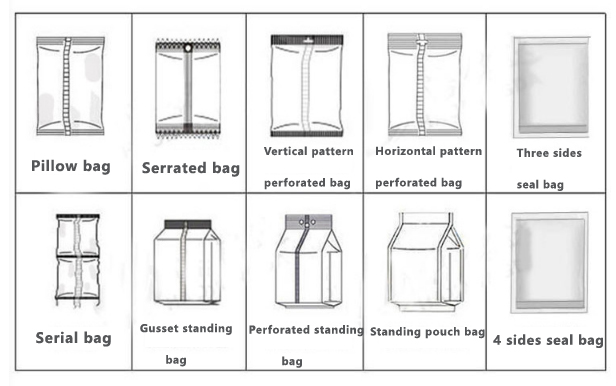

(such as laminated film, ((PET/ PE, OPP/CPP,OPP/ CE)), paper.

auto powder packing machine








coffee powder packing machine





coffee powder packing machine
CE, ISO, Google partner, Alibaba Verified Golden partner, and Chinese government certifications.




(Standard export wooden cases.)
Packing Machine
Model BS-420
Film width Max.420mm
Film thickness 0.03-0.1mm
Bag width 50-200 mm
Bag length 50-300mm
Packing speed 10-70 bags/ min
Power 2.2 KW
Air/ gass consumption 0.65 Mpa, 0.3 m³/ min
Machine weight 600 kg
Dimensions 1080(L)* 1300(W)1400(H) mm
Packing film materials OPP, CPP, OPP/PE, PET/ PE, Aluminum, and etc.
Auger filler machine
Powder filling weight 10-5000 g
Filling accuracy 0.1g-1.5 g
Filling rate 40-120 times/ min
Power supply 3P/ 220V-415V 50/60 HZ
Total power 1.9 KW
Total weight 200 kg
Over dimension (L)1060*(W)600*(H)1100 mm

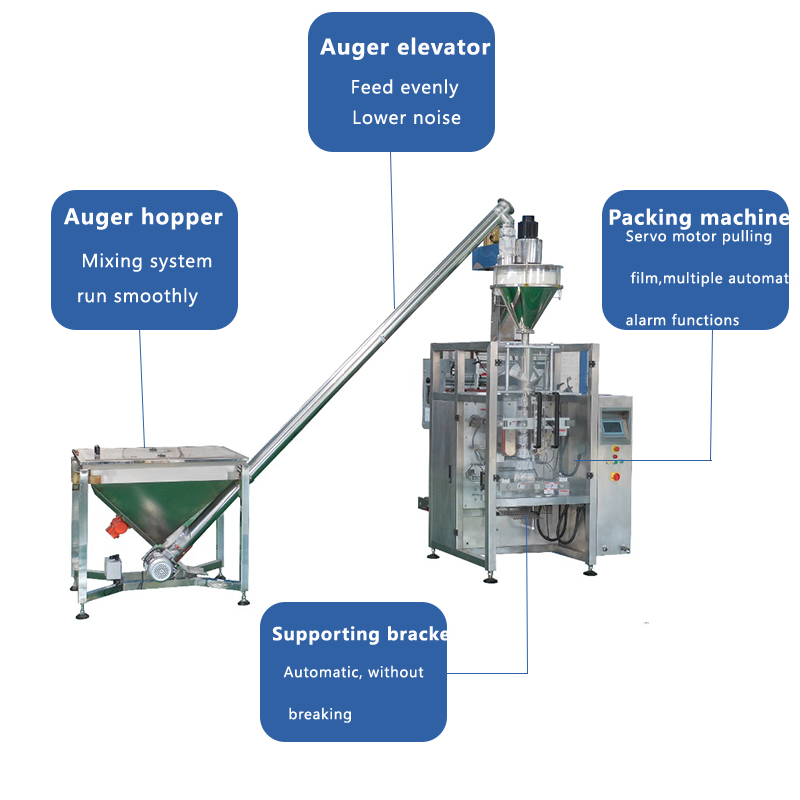

Auger elevator
Charging capacity 3 CBM/ H
Power supply 810 W
Diameter of pipe Φ114 mm
Hopper volume 180 L
Power supply 3P 208-415V 50-60HZ
Total weight 130 kg
Overall dimension (L)1023*(W)823*(H)870 mm  (adjustable)
