Boshi pack CE automatic milk powder packing machine
1)The servo motor version, high speed output, stable operation, saving time and film.
2)Specific powder counting system controlled by servo motor.
3)Interface features easy and quick setting and operation.
4)High sensitivity photoelectric eye color tracing, numerical input of cutting sealing position for extra accuracy.
5)Temperature independent PID control, more suitable for packaging different materials.
6)Positioned stop function, without sticking knife or wasting film.
7)Simple driving system, reliable working, convenient maintenance.
8)All control is realized through software, easy for function adjusting and technical upgraded.
Boshi pack CE automatic milk powder packing machine
Applications.
Suitable for packing coffee powder, wheat flour, milk powder, spice powder, protein powder, and etc.
Suitable for packing coffee powder, wheat flour, milk powder, spice powder, protein powder, and etc.

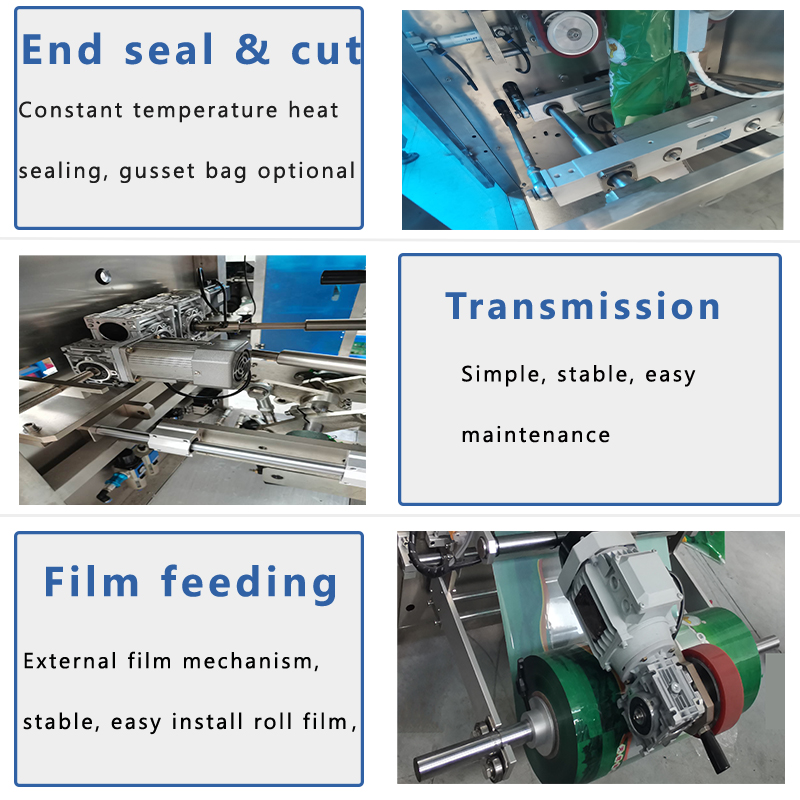

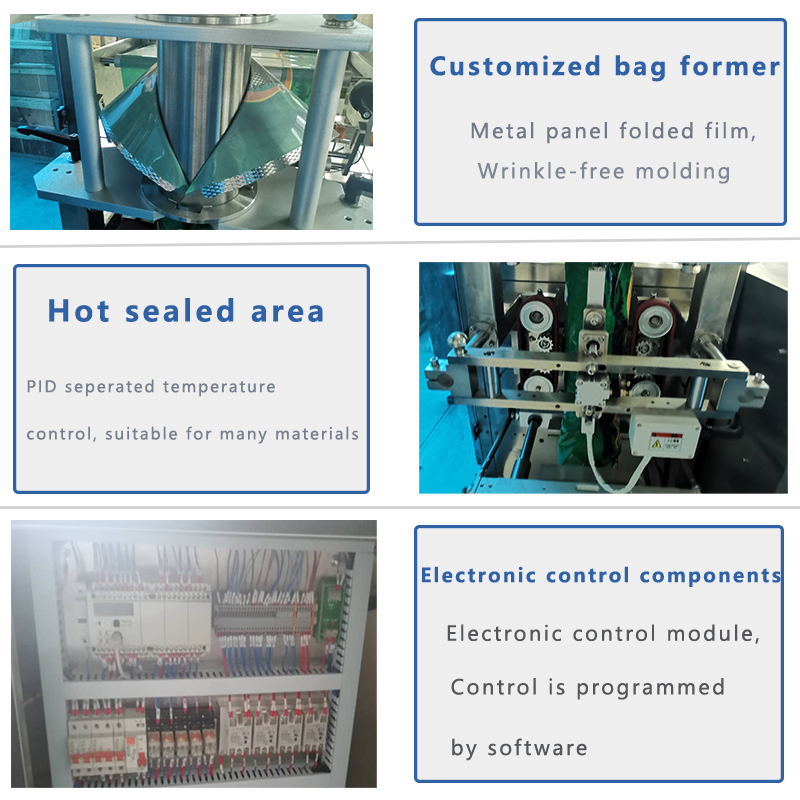

Packing machine details.
Material types of roll film.
(such as laminated film, ((PET/ PE, OPP/CPP,OPP/ CE)), paper.
Certifications.
CE, ISO, Google partner, Alibaba partner, and Chinese government certifications.
CE, ISO, Google partner, Alibaba partner, and Chinese government certifications.
Packing and Shipping.
(Standard export wooden cases.)
(Standard export wooden cases.)
| Model | BS-420 |
| Film width | Max.420mm |
| Film thickness | 0.03-0.1mm |
| Bag width | 50-200 mm |
| Bag length | 50-300mm |
| Packing speed | 10-70 bags/ min |
| Power | 2.2 KW |
| Air/ gass consumption | 0.65 Mpa, 0.3 m³/ min |
| Machine weight | 600 kg |
| Dimensions | 1080(L)* 1300(W)1400(H) mm |
| Packing film materials | OPP, CPP, OPP/PE, PET/ PE, Aluminum, and etc. |
