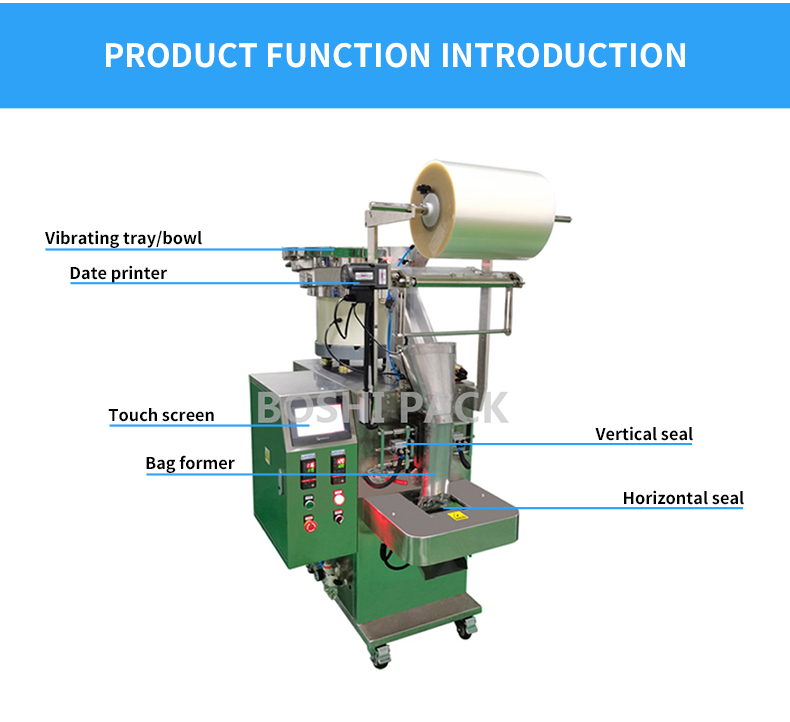

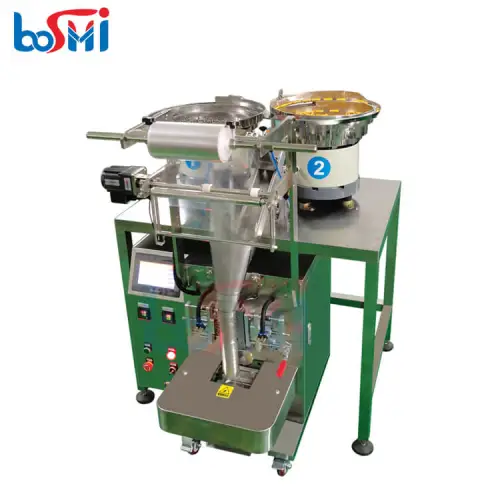

Boshi pack CE automatic pillow screw packing machine
The advantage of the automatic pillow packing machine
1)Three servo motor version, high speed output, stable operation, saving time and film.

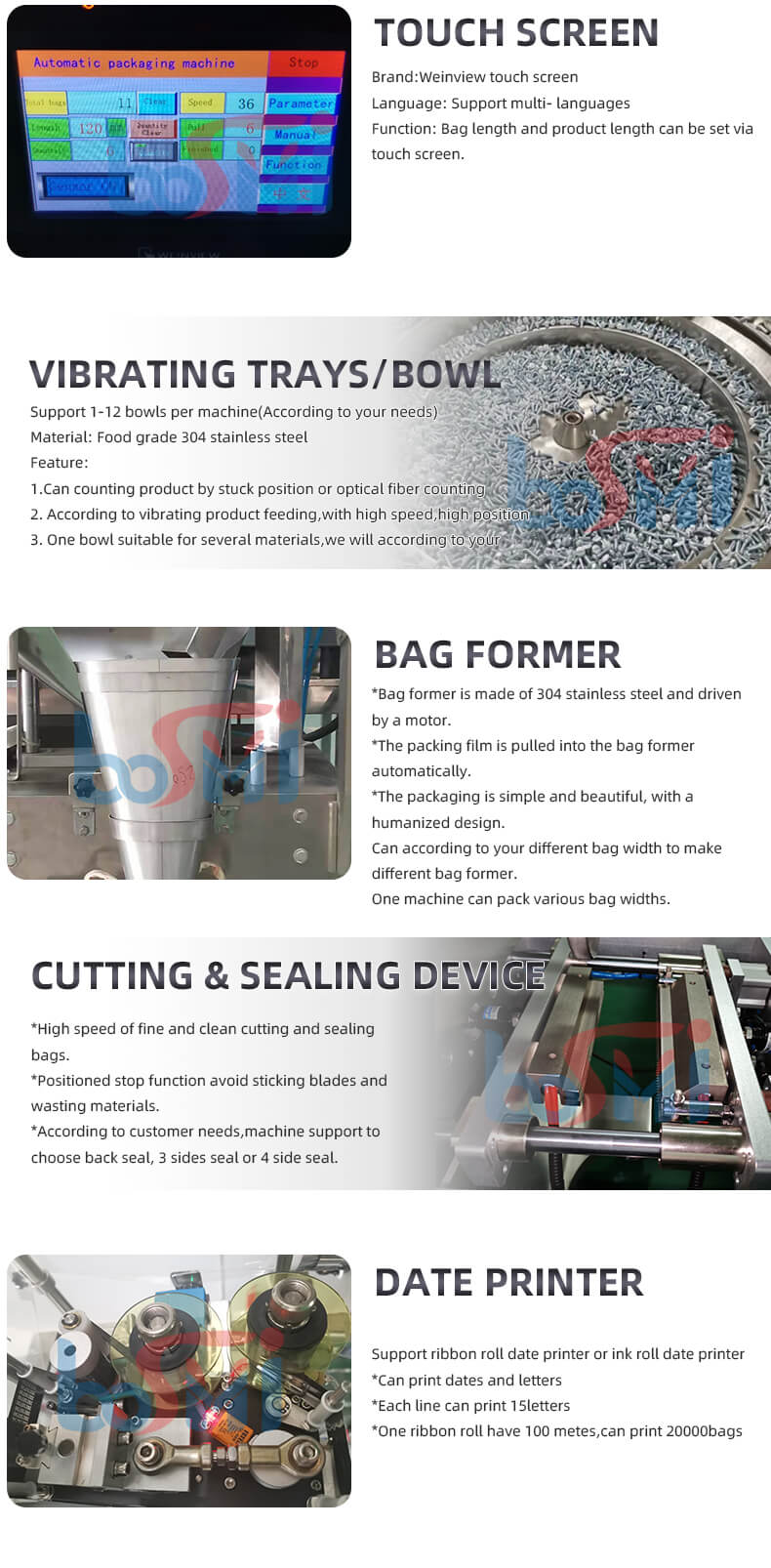

2)Interface features easy and quick setting and operation.
3)Self failure diagnosis, clear failure display.
4)High sensitivity photoelectric eye color tracing, numerical input of cutting sealing position for extra accuracy.
5)Temperature independent PID control, more suitable for packaging different materials.
6)Positioned stop function, without sticking knife or wasting film.
7)Simple driving system, reliable working, convenient maintenance.
8)All control is realized through software, easy for function adjusting and technical upgraded.

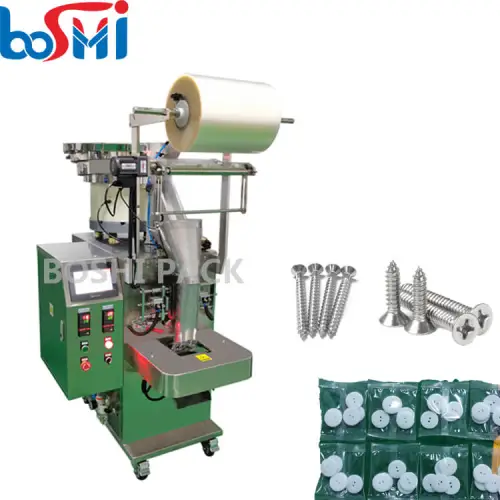

Boshi pack CE automatic pillow screw packing machine
1.This equipment could be connected with production line directly, or put product into feeding line by manual.
2.Equipment can be customize by your product characteristics .Machine can avoid product extruding/being cutting, when product in failure condition, machine will auto eliminate excess material without machine stop, to guarantee whole production and packing process continuously and stably working.
3.Adopt multi- frequency drives control speed, servo drives control, easy operation, stable working, high control preciseness, low energy consumption.
4.Adopt stainless steel and aluminum alloy frame structure, humanized design, easy install,easy disassemble and simple maintenance.
5.Full automatic feeding-alignment-orienting-distribution- packing.

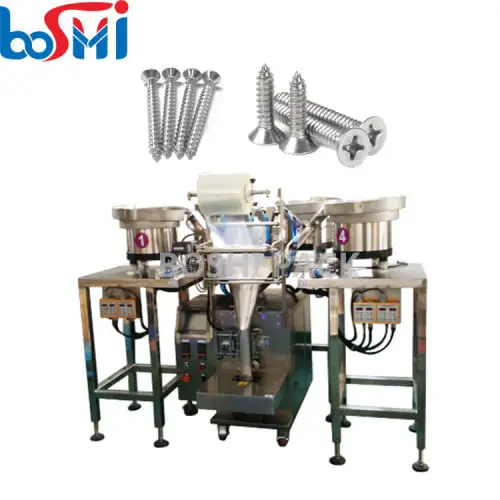

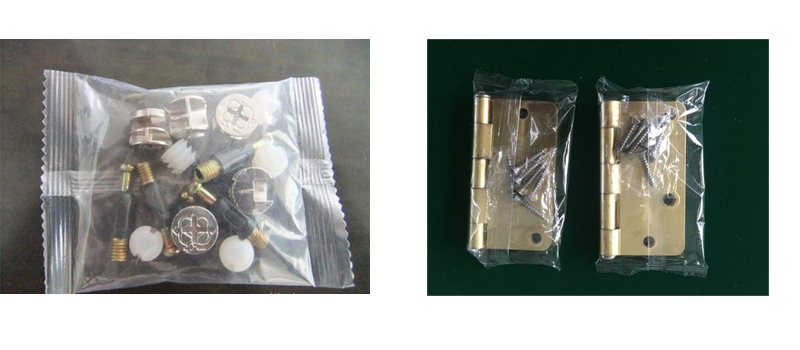

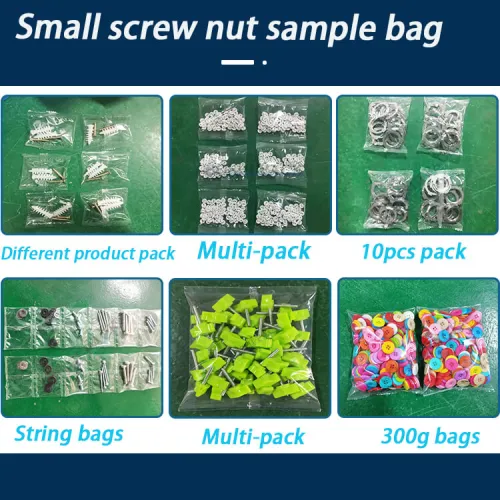

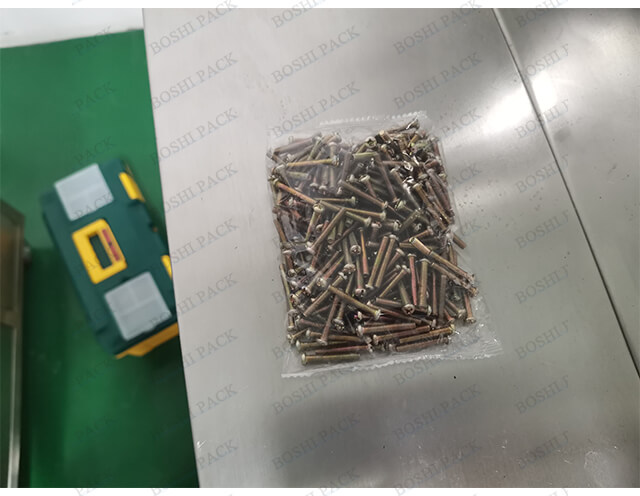

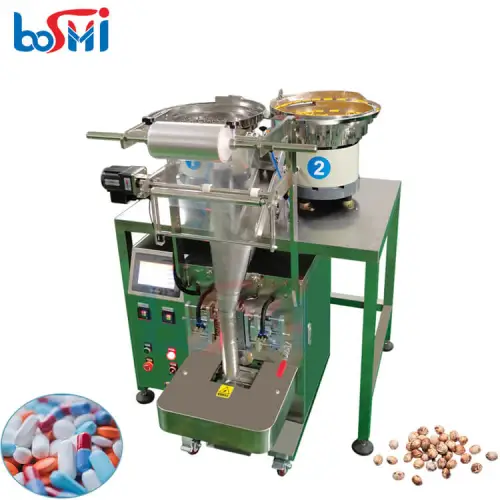

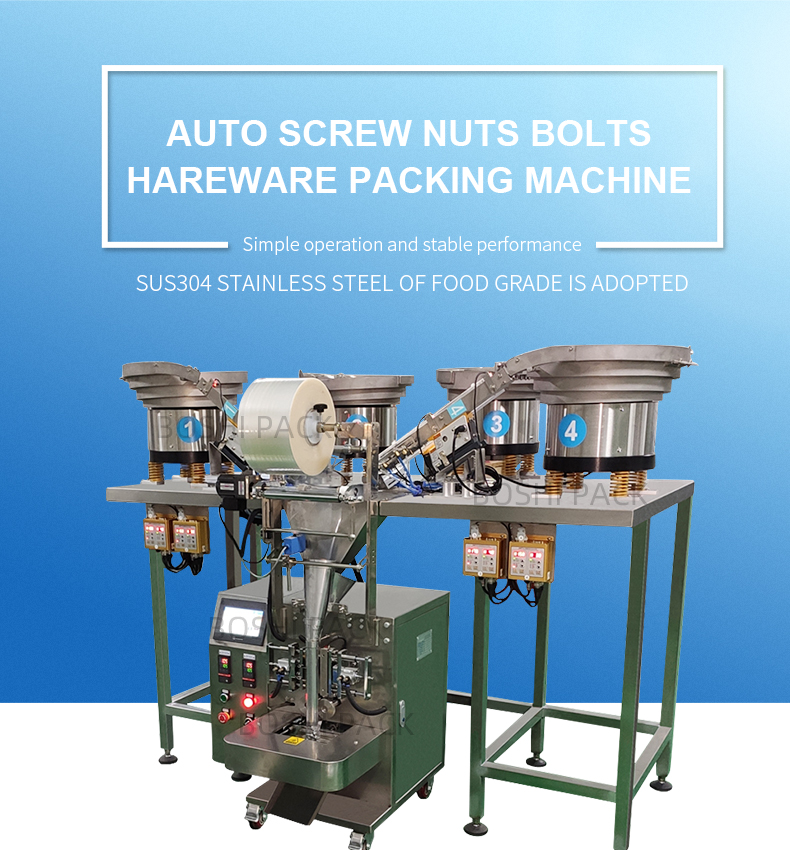

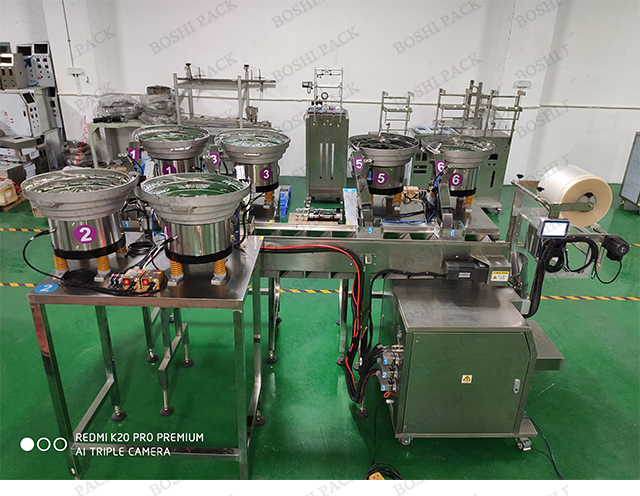

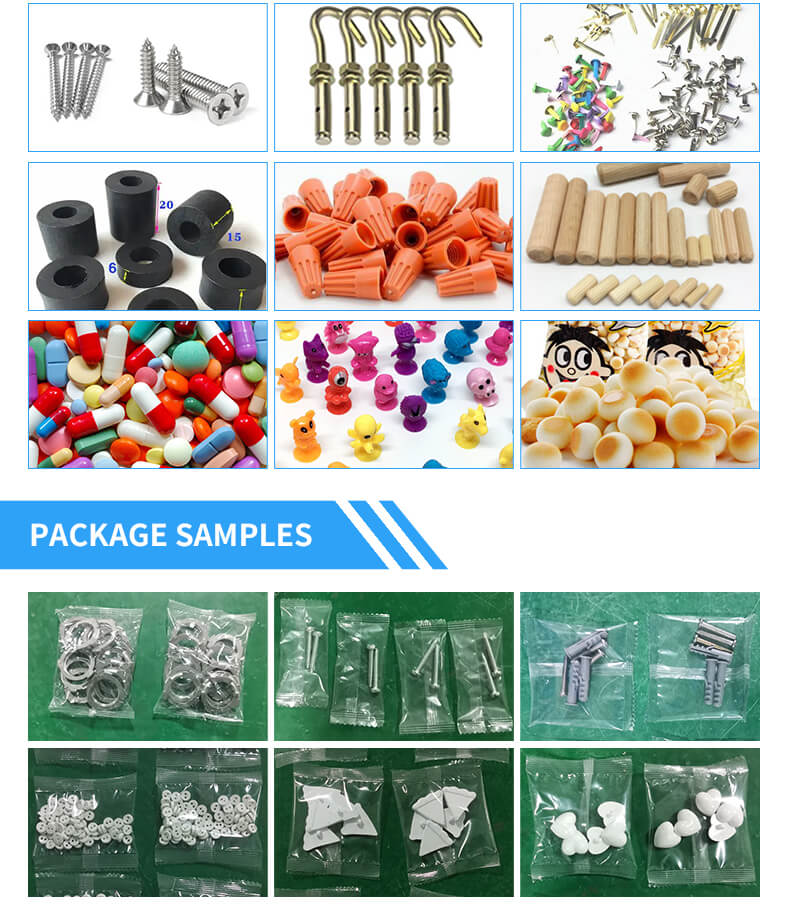

Bowl vibration counting and packing machine is suitable for hardware accessories, such as screws, nuts, washers; furniture accessories, such as wooden pins,self-tapping screws, wrenches; standard accessories, such as toys, food, medicine; lighting industry, such as: Hanging boards,wiring caps, expansion rubber, foot nails and other materials.
1. What does your after-sales services?
Manual Installation Book, video support, on-line support. Also engineers overseas.
2. Are you factory or trading company?
We are the factory, we doing this line for more than 15 years.
3. What's your payment way?
T/T by our bank account directly, or by West Union, or in cash.
4. How can we make sure about the machine quality after we put the order?
Before delivery, we will send you the pictures and videos for you to check the quality,
and also you can arrange for quality checking by yourself or by your contacts in the third party inspection organization.
| Model | BS-320B |
| Film width | Max.320 mm |
| Film thickness | 0.03-0.1mm |
| Bag width | 40-150 mm |
| Bag length | L35-150m，W25-150mm |
| Type of sealing | Pillow bag or 3-side sealing |
| Packing speed | 1-40 bags/min |
| Power | AC220V/50Hz P≈3KW |
| Machine dimensions | L1100mm*W1800mm*H1460mm |
| Machine weight | N.W 300kg, G.W 350kg |
| Option devices | Date printer, hole puncher, label machine |
| Packing film materials | OPP, CPP, OPP/PE, PET/ PE, Aluminum, and etc. |
