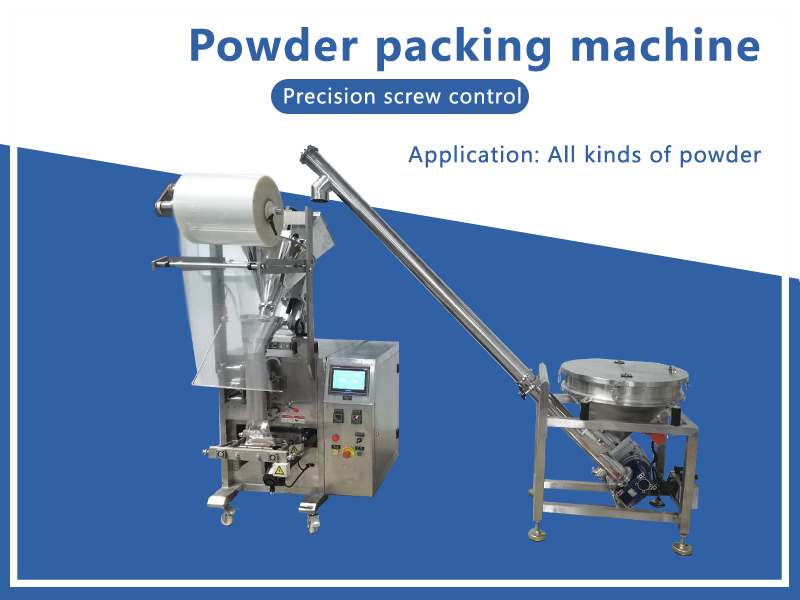

Boshi pack CE automatic small bag 3 in 1 coffee packing machine


1)High precision structure for simple and easy to operation and repair.
2)PLC touch screen, step motor control, easy and accurate to set the bag length.
3)Its owns simple circuity and outstanding function.
4)The machine complete the whole procedure of filling, bagging, date printing, charging(exhausting) automatically.
5)Selecte device: Linked bags device.
6)High sensitivity photoelectric eye color tracing, numerical input of cutting sealing position for extra accuracy.
7)Temperature independent PID control, more suitable for packaging different materials.
8)Positioned stop function, without sticking knife or wasting film.
9)Simple driving system, reliable working, convenient maintenance.
10)All control is realized through software, easy for function adjusting and technical upgraded.



Boshi pack CE automatic small bag 3 in 1 coffee packing machine

3 in 1 coffee packing machine




Applications.
Suitable for packing spices, pepper, coffee powder, and etc.
3 in 1 coffee packing machine

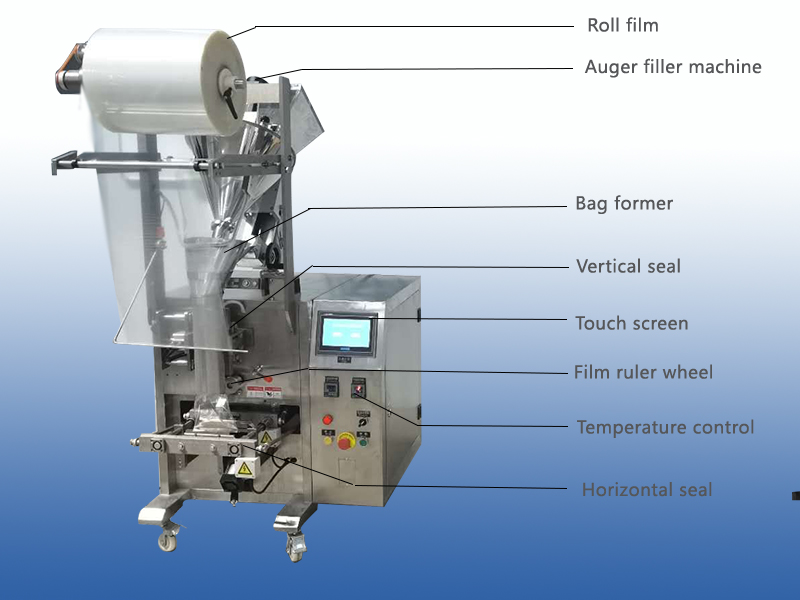

Packing machine details.

3 in 1 coffee packing machine


3 in 1 coffee packing machine


Material types of roll film.

(such as laminated film, ((PET/ PE, OPP/CPP,OPP/ CE)), paper.



Certifications.
CE, ISO, Google partner, Alibaba partner, and Chinese government certifications.



Packing and Shipping.
(Standard export wooden cases.)
Model BS-320
Film width Max.320mm
Film thickness 0.03-0.1mm
Bag width 50-150 mm
Bag length 50-200mm
Film roll diameter Max. 300mm
Packing speed 35-70 bags/ min
Power 2.2 KW
Machine weight 300 kg
Dimensions 970(L)* 680(W)1950(H) mm
Packing film materials OPP, CPP, OPP/PE, PET/ PE, Aluminum, and etc.
