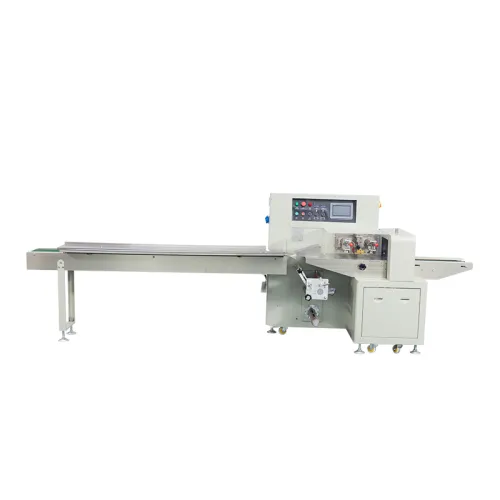

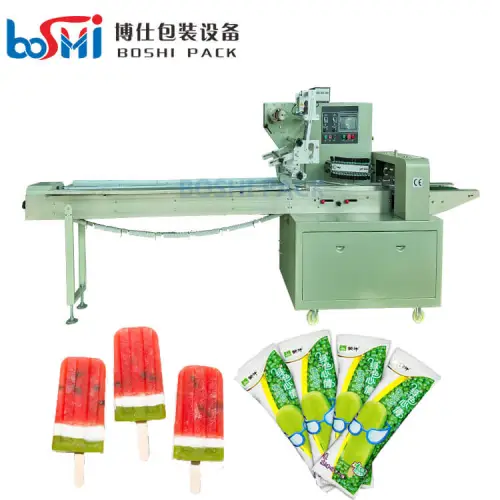

Boshi pack CE high quality automatic popsicle packing machine for food
The advantage of three servo motor face mask packing machine
1)Three servo motor version, high speed output, stable operation, saving time and film.
2)Interface features easy and quick setting and operation.
3)Self failure diagnosis, clear failure display.
4)High sensitivity photoelectric eye color tracing, numerical input of cutting sealing position for extra accuracy.
5)Temperature independent PID control, more suitable for packaging different materials.
6)Positioned stop function, without sticking knife or wasting film.
7)Simple driving system, reliable working, convenient maintenance.
8)All control is realized through software, easy for function adjusting and technical upgraded.
Boshi Pack CE High Quality Automatic Popsicle Packing Machine For Food
►Product Advantages：1. Full servo control, the bag length can be set and cut immediately, no need to adjust the idling, it can be done in one step, saving time and film.
2. Human-machine interface, parameter setting is convenient and quick.
3. Fault self-diagnosis function, fault display is clear at a glance.
4. High-sensitivity photoelectric eye color mark tracking, digital input
of sealing and cutting position, so that the sealing and cutting position is more accurate.
5. The temperature is controlled by PID, which is more suitable for various packaging materials.
6. Positioning stop function, no sticking to the knife, no waste of film.
7. The transmission system is simple, the work is more reliable, and the maintenance is more convenient.
8. All controls are realized by software, which is convenient for function adjustment and technical upgrade.
►Applicaton:
Can be widely used in various industries：
Suitable for aluminum foil bags, plastic bags, composite bags, kraft paper, fresh-keeping bags, Tea bags, shrink films, food packaging, widely used in food, medicine, hardware, chemicals, agriculture and so on
►Kindly Reminder:
We have experienced team of R & D engineers who can customize packaging solutions according to your product characteristics.
Please tell us the following information while you send us an inquiry. Base on your message, we will suggest the optimum solution to you for reference. Thank you.
1. Your product
2. Bag dimension
3. Bag weight
4. Bag shape
| Model | BS-350X |
| Film width | Max.350mm |
| Film thickness | 0.03-0.1mm |
| Bag width | 50-160 mm |
| Bag length | 65-190 mm, 90-220mm, or 150-330 mm |
| Product height | 40-60 mm |
| Packing speed | 40-180 bags/ min |
| Power | 2.6 KW |
| Machine dimensions | 4020*770*1450 mm |
| Machine weight | 680 kg |
| Option devices | Date printer, hole puncher, label machine |
| Packing film materials | OPP, CPP, OPP/PE, PET/ PE, Aluminum, and etc. |
