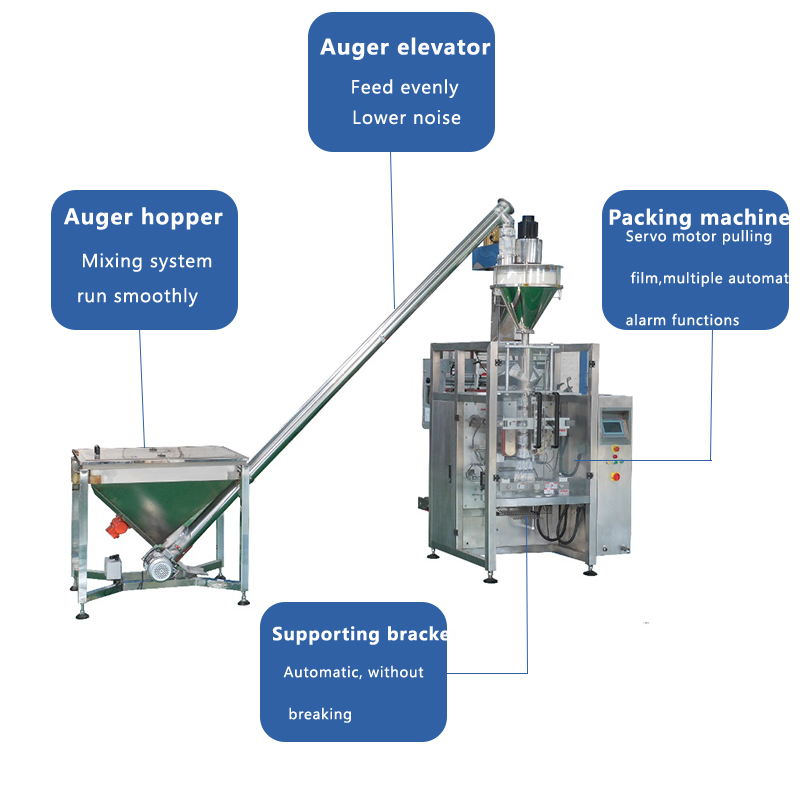

Boshi pack fully automatic 1kg flour packing machine


1)The servo motor version, high speed output, stable operation, saving time and film.
2)Specific powder counting system controlled by servo motor.
3)Interface features easy and quick setting and operation.
4)High sensitivity photoelectric eye color tracing, numerical input of cutting sealing position for extra accuracy.
5)Temperature independent PID control, more suitable for packaging different materials.
6)Positioned stop function, without sticking knife or wasting film.
7)Simple driving system, reliable working, convenient maintenance.
8)All control is realized through software, easy for function adjusting and technical upgraded.




Boshi pack fully automatic 1kg flour packing machine




Applications.
Suitable for packing coffee powder, wheat flour, milk powder, spice powder, protein powder, and etc.

flour packing machine

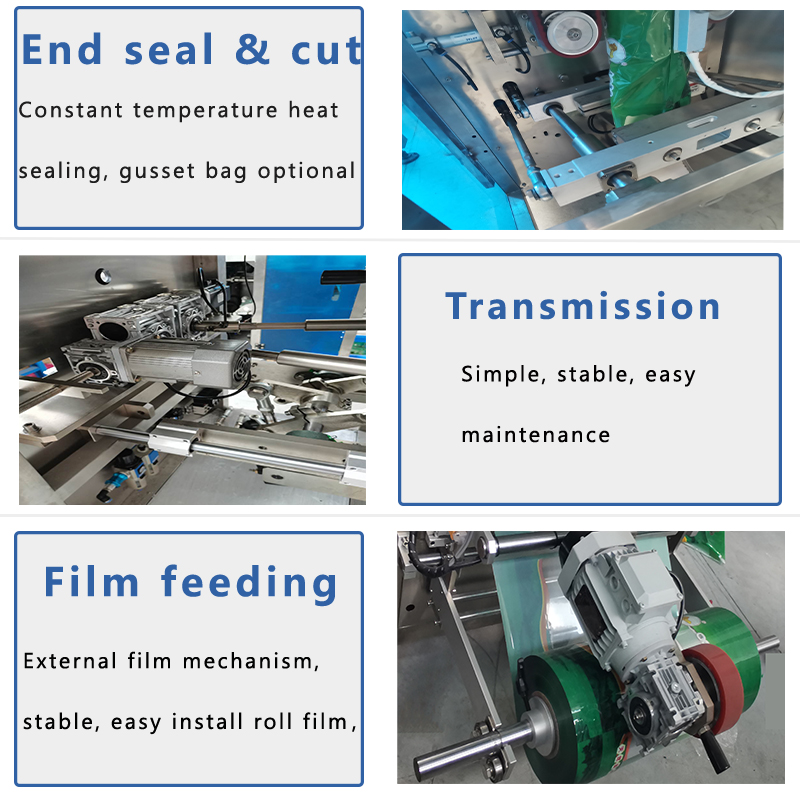

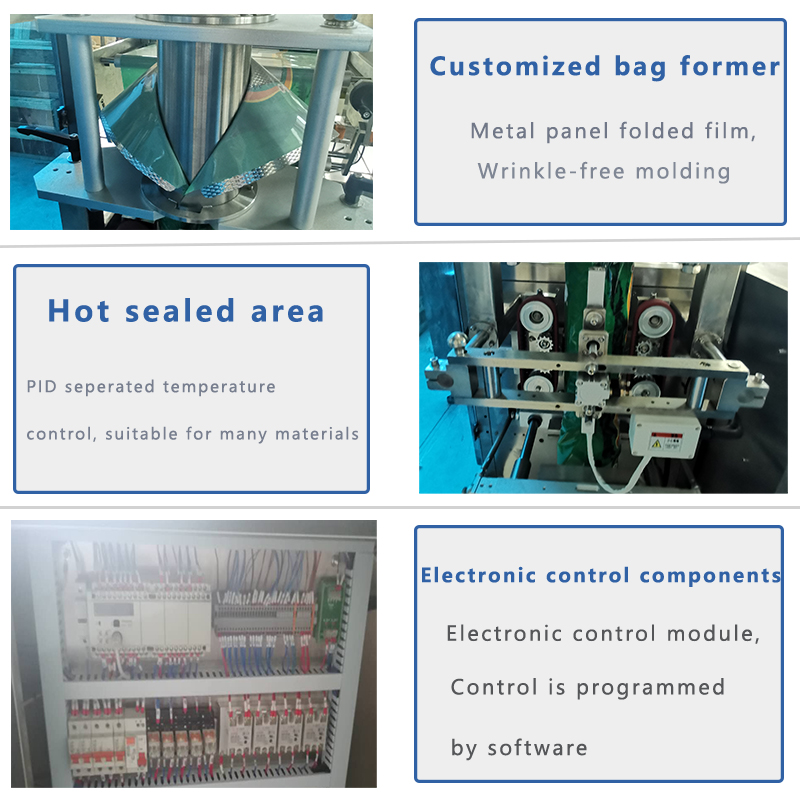

Packing machine details.












Material types of roll film.

(such as laminated film, ((PET/ PE, OPP/CPP,OPP/ CE)), paper.



Certifications.
CE, ISO, Google partner, Alibaba partner, and Chinese government certifications.



Packing and Shipping.
(Standard export wooden cases.)
Model BS-420
Film width Max.420mm
Film thickness 0.03-0.1mm
Bag width 50-200 mm
Bag length 50-300mm
Packing speed 10-70 bags/ min
Power 2.2 KW
Air/ gass consumption 0.65 Mpa, 0.3 m³/ min
Machine weight 600 kg
Dimensions 1080(L)* 1300(W)1400(H) mm
Packing film materials OPP, CPP, OPP/PE, PET/ PE, Aluminum, and etc.
