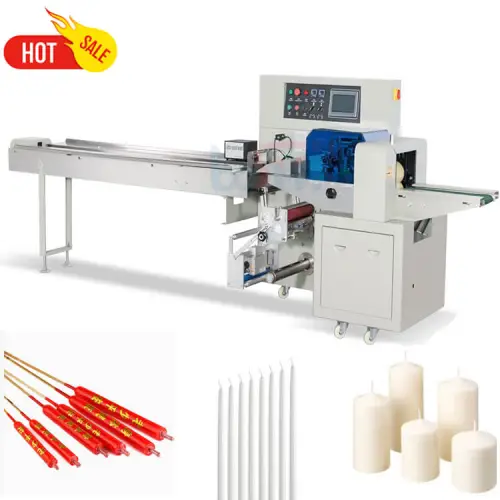

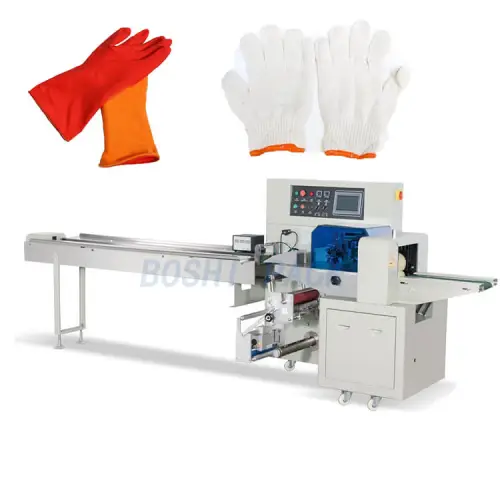

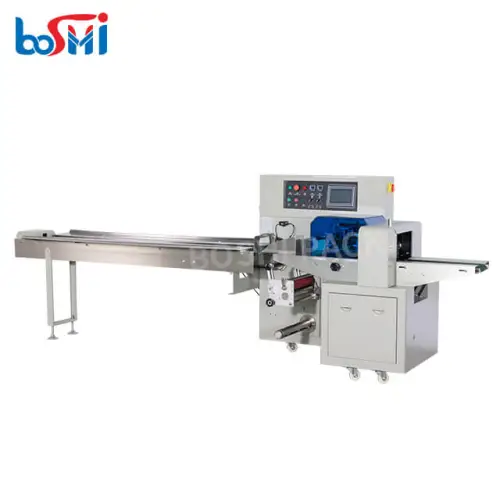

CE high speed automatic flow gloves packing machine candle packaging machine

The advantage of three servo motor automatic golves packing machine
1)Three servo motor version, high speed output, stable operation, saving time and film.
2)Interface features easy and quick setting and operation.
3)Self failure diagnosis, clear failure display.
4)High sensitivity photoelectric eye color tracing, numerical input of cutting sealing position for extra accuracy.
5)Temperature independent PID control, more suitable for packaging different materials.
6)Positioned stop function, without sticking knife or wasting film.
7)Simple driving system, reliable working, convenient maintenance.







      CE high speed automatic flow gloves packing machine candle packaging machine











Model BS-350xs
Film width Max.350
Film thickness 0.03-0.1mm
Bag width 35-165mm
Bag length 65-190 mm, 120-280mm, or 90-220 mm
Product height max. 55mm
Packing speed 40-230 bags/ min
Power 2.4 KW
Machine dimensions 3770*680*1420 mm
Machine weight 500 kg
Option devices Date printer, hole puncher, label machine
Packing film materials OPP, CPP, OPP/PE, PET/ PE, Aluminum, and etc.
