chili powder packing machine | Boshi Pack CE automatic multi-function VFFS chili powder packaging machine
The features of the automatic chilli powder packaging machine
1)The servo motor version, high speed output, stable operation, saving time and film.
2)Specific powder counting system controlled by servo motor.
3)Interface features easy and quick setting and operation.
4)High sensitivity photoelectric eye color tracing, numerical input of cutting sealing position for extra accuracy.
5)Temperature independent PID control, more suitable for packaging different materials.
6)Positioned stop function, without sticking knife or wasting film.
7)Simple driving system, reliable working, convenient maintenance.
8)All control is realized through software, easy for function adjusting and technical upgraded.

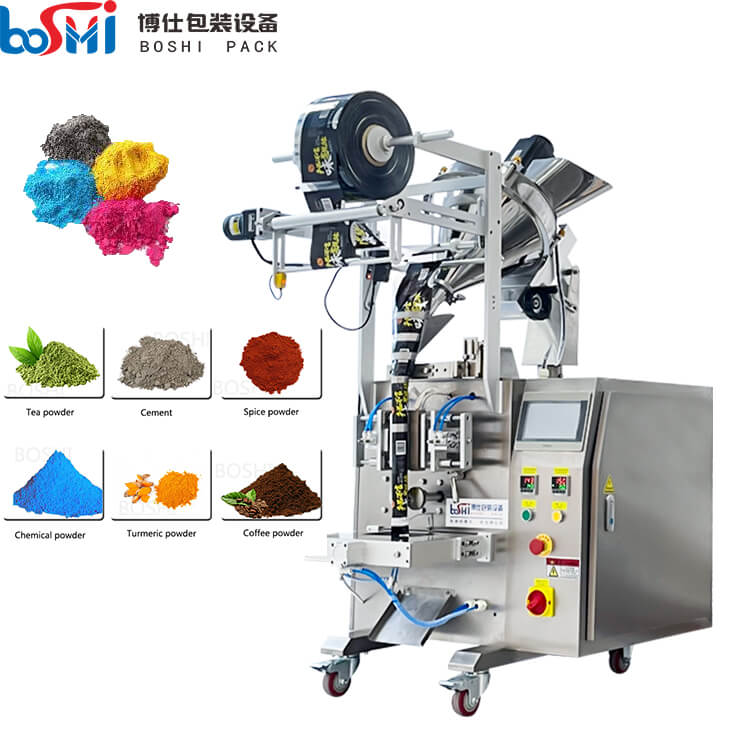

Boshi Pack CE automatic multi-function VFFS chili powder packaging machine
1)Simple structure in linear type ,easy in installation and maintain.
2) Adopting advanced world famous brand components in pneumatic parts ,electric parts and operation parts.
3) High pressure double crank to control the die opening and closing.
4) Running in a high automation and intelligent ,no pollution
5) Apply a linker to connect with the air conveyor ,which can directly inline with filling machine .
coffee powder packing ma
Applications:

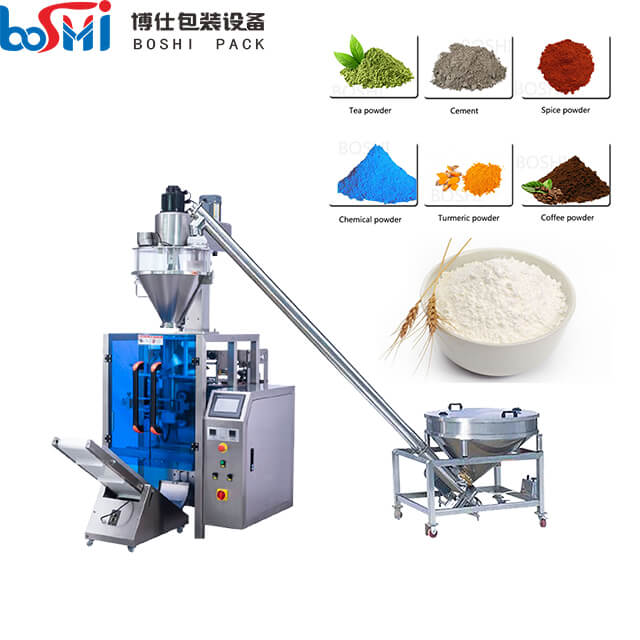

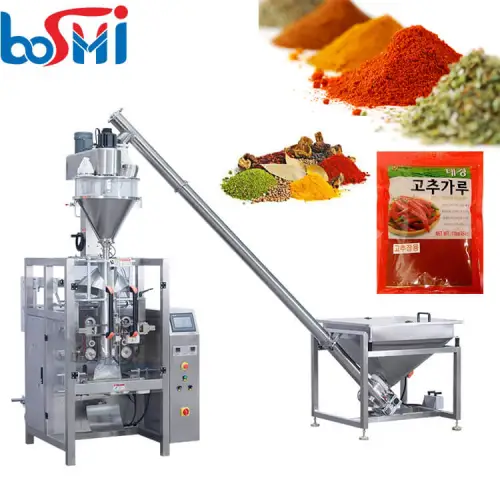

Suitable for filling and packing varieties of powders, such as spice, flour, milk powder, coffee powder, fruit powder,cocoa powder, grain powder, wheat flour, vitamin powder, chemical powder, paint powder,and etc.Whole machine main including 4parts:
1) Powder feeding machine

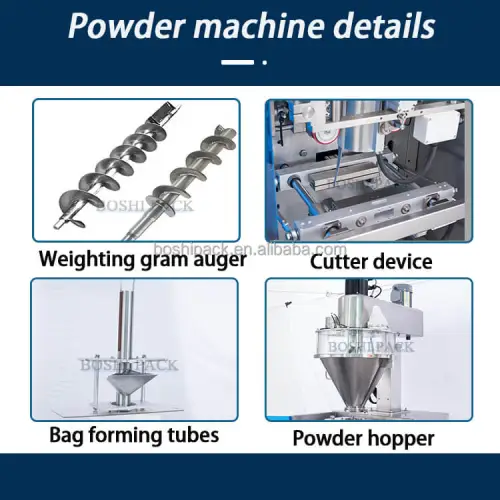

2) Auger filler
3) Packing machine host
4) Finished products conveyor( If needed)
Main Features:2) Auger filler
3) Packing machine host
4) Finished products conveyor( If needed)
1)Simple structure in linear type ,easy in installation and maintain.
2) Adopting advanced world famous brand components in pneumatic parts ,electric parts and operation parts.
3) High pressure double crank to control the die opening and closing.
4) Running in a high automation and intelligent ,no pollution
5) Apply a linker to connect with the air conveyor ,which can directly inline with filling machine .
Standard Features:
1. The machine use high precision servo film transport system, PLC Program Control, developed touchable Human-machine Interface of Advanced Automatic Positioning, Photoelectric Tracking, Digital Temperature Control,etc.
2. Operation is more simple, perfect. It is the first choice of food packaging industry to Improve the production efficiency,reduce Labor Intensity, improve the grade of packaging equipment.
3. Bag end + middle back sealing temperature control independently, suitable for pure PE, CPP/OPP, BOPP/CPP, PE/polyethylene, PE/aluminum plating, pet/PE, PP, and other heat-sealing packaging materials.
4. It completes the whole procedure of filling, measuring, bagging, date printing, charging(exhausting), product out-putting automatically.
5. High precision, high efficiency without crash the materials.
6. Packaging style diversified, back sealing, gusset bag, string bags, punching, etc.
7. Work environment quiet, low noise, saving energy.
8. A complete set of equipment is economical.
For smaller mini powder packing machine ,you may like follow machine BS-320P Click here, you will see it's details:
cili powder packing mac2. Operation is more simple, perfect. It is the first choice of food packaging industry to Improve the production efficiency,reduce Labor Intensity, improve the grade of packaging equipment.
3. Bag end + middle back sealing temperature control independently, suitable for pure PE, CPP/OPP, BOPP/CPP, PE/polyethylene, PE/aluminum plating, pet/PE, PP, and other heat-sealing packaging materials.
4. It completes the whole procedure of filling, measuring, bagging, date printing, charging(exhausting), product out-putting automatically.
5. High precision, high efficiency without crash the materials.
6. Packaging style diversified, back sealing, gusset bag, string bags, punching, etc.
7. Work environment quiet, low noise, saving energy.
8. A complete set of equipment is economical.
For smaller mini powder packing machine ,you may like follow machine BS-320P Click here, you will see it's details:
<You may like>
About Us:
FOSHAN BOSHI PACKING MACHINERY CO., LTD.
Located in Foshan city, next to Guangzhou city, is a professional manufacturer of series packing machine with morn than 13 years experience. Main produce packing machine as follows:
Pillow packing machine (For food, commodities, hardware , toys, soft, loose, solid products packing);
Granule packing machine (Multi-head weigher packing machine - For dry food, such as nuts, chips, candy .-For frozen food, such as dumpling, chicken leg, fish, pork. -For hardware screws. For vegetables,small fruits ,etc)
Line weigher /Volumetric cup packing machine( For small granules like sugar, salt, rice,beans,nuts, grain )
Powder packing machine( For coffee powder, milk powder, instant powder,flour, and etc.);
Liquid packing machine( For sauce, jam, honey, juice, paste, jelly, oil, shampoo, and etc.);
Pillow packing machine (For food, commodities, hardware , toys, soft, loose, solid products packing);
Granule packing machine (Multi-head weigher packing machine - For dry food, such as nuts, chips, candy .-For frozen food, such as dumpling, chicken leg, fish, pork. -For hardware screws. For vegetables,small fruits ,etc)
Line weigher /Volumetric cup packing machine( For small granules like sugar, salt, rice,beans,nuts, grain )
Powder packing machine( For coffee powder, milk powder, instant powder,flour, and etc.);
Liquid packing machine( For sauce, jam, honey, juice, paste, jelly, oil, shampoo, and etc.);
Extruder and packing machine(For play dough, clay, flour dough, light dough, gel, energy bar ,etc.soft materials)
Cling film packing machine (For vegetable,fruit,meat, fish);
Shrink packing machine (For bottles, toys, books, plate, CDS, foods , commodities, and any other solid products)
Cling film packing machine (For vegetable,fruit,meat, fish);
Shrink packing machine (For bottles, toys, books, plate, CDS, foods , commodities, and any other solid products)
| Packing Machine | |
| Model | BS-420 |
| Film width | Max.420mm |
| Film thickness | 0.03-0.1mm |
| Bag width | 50-200 mm |
| Bag length | 50-300mm |
| Packing speed | 10-70 bags/ min |
| Power | 2.2 KW |
| Air/ gass consumption | 0.65 Mpa, 0.3 m³/ min |
| Machine weight | 600 kg |
| Dimensions | 1080(L)* 1300(W)1400(H) mm |
| Packing film materials | OPP, CPP, OPP/PE, PET/ PE, Aluminum, and etc. |
| Auger filler machine | |
| Powder filling weight | 10-5000 g |
| Filling accuracy | 0.1g-1.5 g |
| Filling rate | 40-120 times/ min |
| Power supply | 3P/ 220V-415V 50/60 HZ |
| Total power | 1.9 KW |
| Total weight | 200 kg |
| Over dimension | (L)1060*(W)600*(H)1100 mm |
| Auger elevator | |
| Charging capacity | 3 CBM/ H |
| Power supply | 810 W |
| Diameter of pipe | Φ114 mm |
| Hopper volume | 180 L |
| Power supply | 3P 208-415V 50-60HZ |
| Total weight | 130 kg |
| Overall dimension | (L)1023*(W)823*(H)870 mm (adjustable) |
