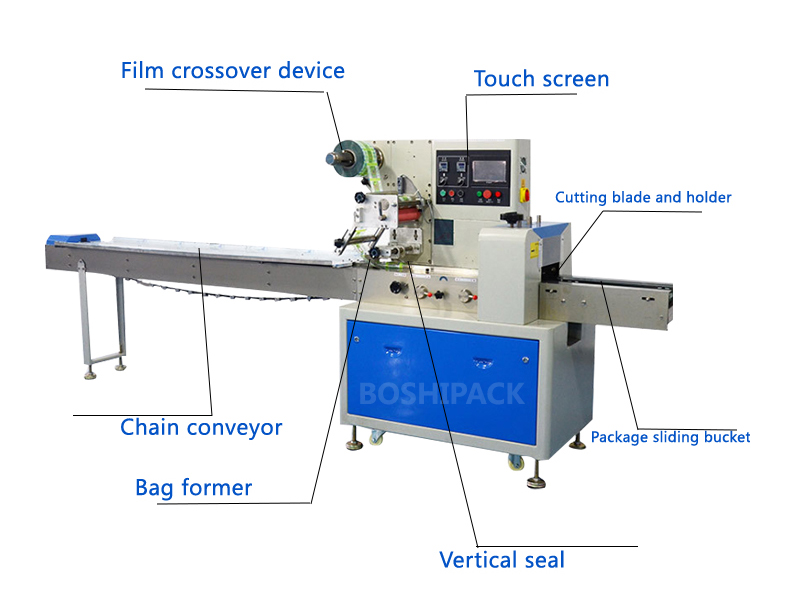

Fully automatic plastic bag bottle label adhesive pillow packing machine
The advantage of the three servo motor automatic pillow packing machine
1)Three servo motor version, high speed output, stable operation, saving time and film.

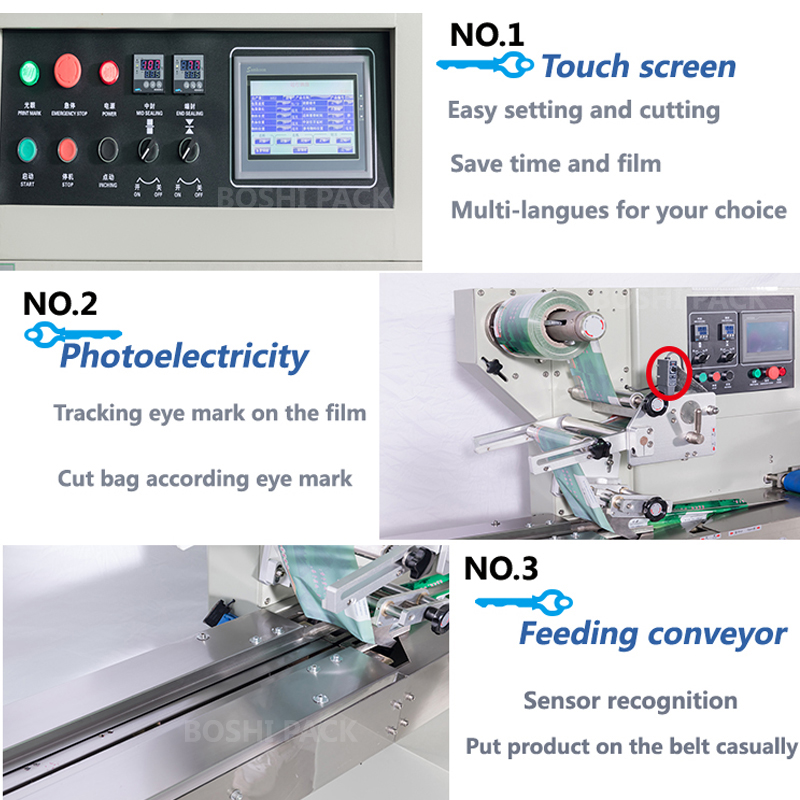

2)Interface features easy and quick setting and operation.
3)Self failure diagnosis, clear failure display.

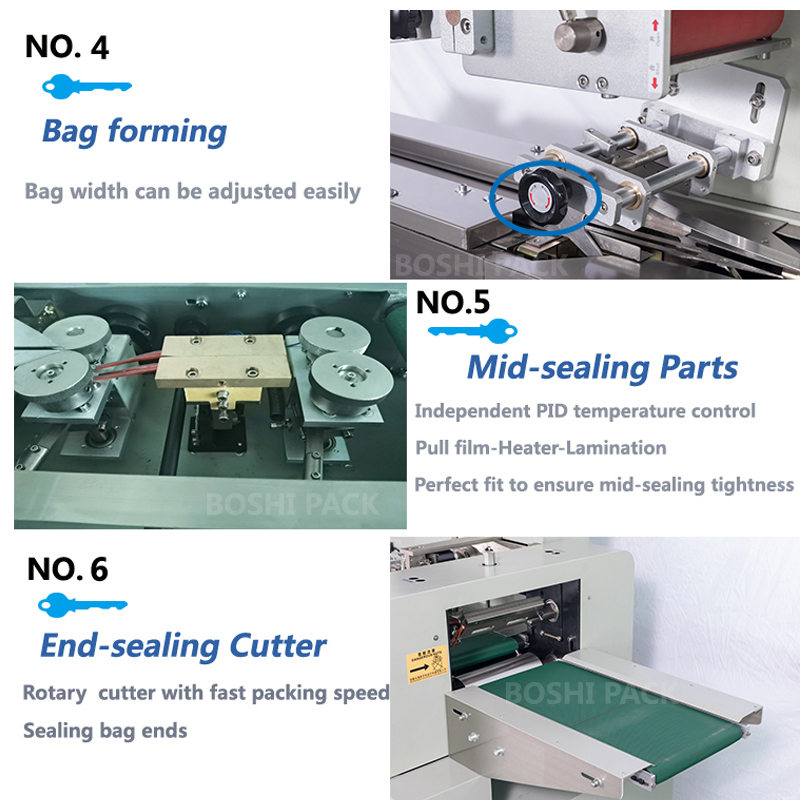

4)High sensitivity photoelectric eye color tracing, numerical input of cutting sealing position for extra accuracy.
5)Temperature independent PID control, more suitable for packaging different materials.
6)Positioned stop function, without sticking knife or wasting film.
7)Simple driving system, reliable working, convenient maintenance.

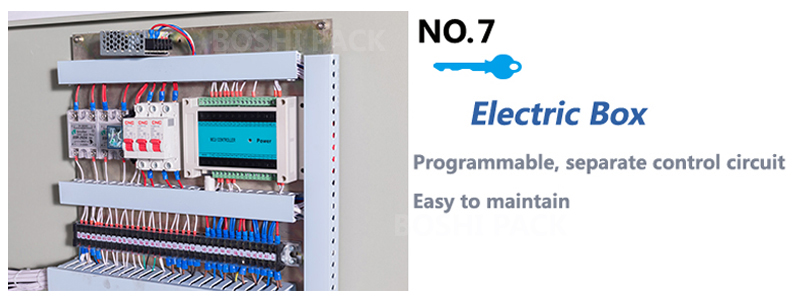

8)All control is realized through software, easy for function adjusting and technical upgraded.
Fully automatic plastic bag bottle label adhesive pillow packing machine
(Automatic pillow packing machine, suitable for bakery bread packing, chocolate bar packing, sausage packing, popsicle packing, hardware packing, and etc.)
(such as laminated film, ((PET/ PE, OPP/CPP,OPP/ CE)), paper.
Option Device
(CE, ISO, Google partner, Alibaba partner, and Chinese government certifications. )
(Standard export wooden cases.)
| Model | BS-250 |
| Film width | Max.250mm |
| Film thickness | 0.03-0.1mm |
| Bag width | 35-120 mm |
| Bag length | 65-190 mm, 120-280mm, or 90-220 mm |
| Product height | max. 55mm |
| Packing speed | 40-230 bags/ min |
| Power | 2.4 KW |
| Machine dimensions | 3770*680*1420 mm |
| Machine weight | 500 kg |
| Option devices | Date printer, hole puncher, label machine |
| Packing film materials | OPP, CPP, OPP/PE, PET/ PE, Aluminum, and etc. |
