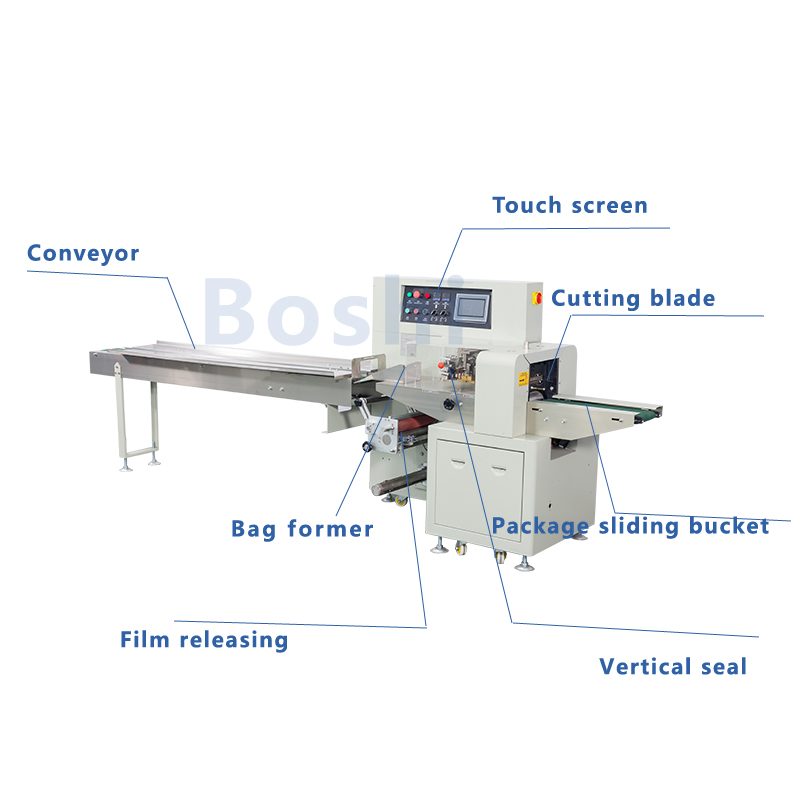

High efficiency pillow type flow food packaging machinery lettuce fruit and vegetable packing machine
The advantage of three servo motor vegetables packing machine
1)Three servo motor version, high speed output, stable operation, saving time and film.

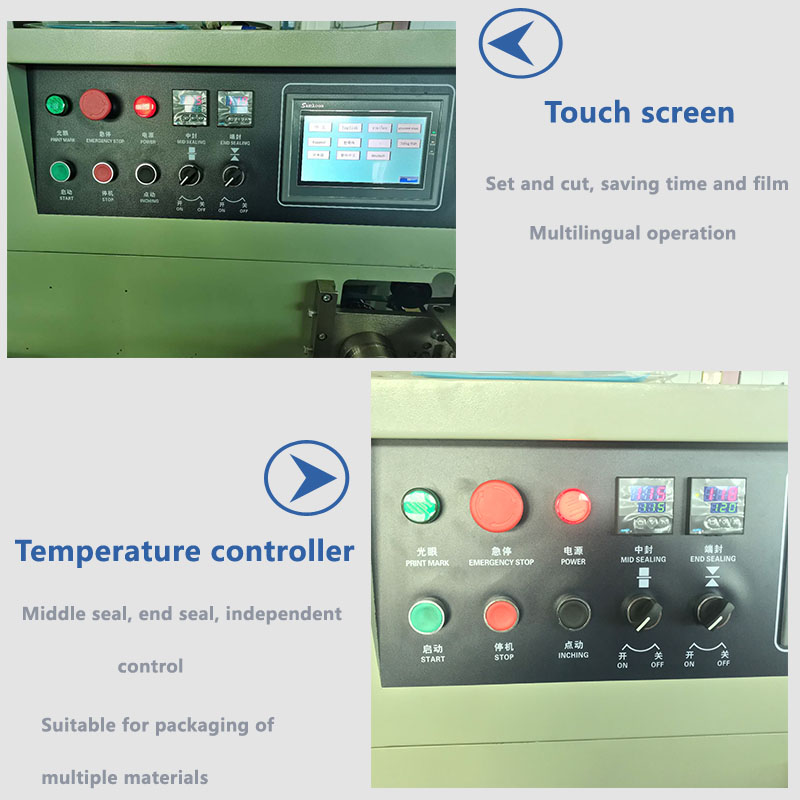

2)Interface features easy and quick setting and operation.
3)Self failure diagnosis, clear failure display.

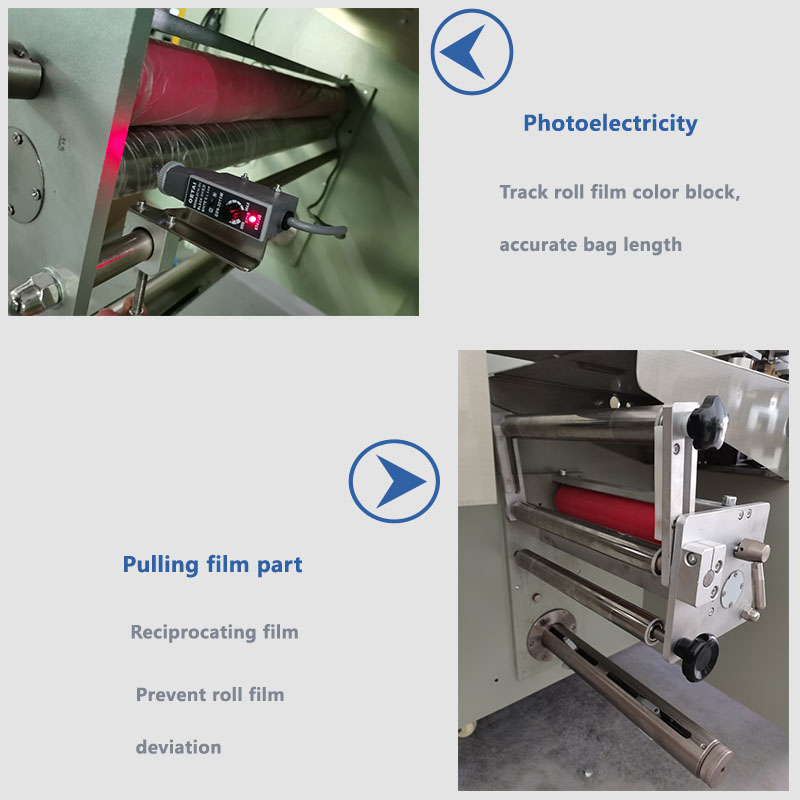

4)High sensitivity photoelectric eye color tracing, numerical input of cutting sealing position for extra accuracy.
5)Temperature independent PID control, more suitable for packaging different materials.
6)Positioned stop function, without sticking knife or wasting film.
7)Simple driving system, reliable working, convenient maintenance.
8)All control is realized through software, easy for function adjusting and technical upgraded.
High efficiency pillow type flow food packaging machinery lettuce fruit and vegetable packing machine
(Vegetable pillow packing machine, suitable for vegetables, fruit, sausage, bread, and etc.)
(such as laminated film, ((PET/ PE, OPP/CPP,OPP/ CE)), paper.
Option Device
CE, ISO, Google partner, Alibaba partner, and Chinese government certifications.
(Standard export wooden cases.)
| Model | BS-350X |
| Film width | Max.350mm |
| Film thickness | 0.03-0.1mm |
| Bag width | 50-160 mm |
| Bag length | 65-190 mm, 90-220mm, or 150-330 mm |
| Product height | 40-60 mm |
| Packing speed | 40-180 bags/ min |
| Power | 2.6 KW |
| Machine dimensions | 4020*770*1450 mm |
| Machine weight | 680 kg |
| Option devices | Date printer, hole puncher, label machine |
| Packing film materials | OPP, CPP, OPP/PE, PET/ PE, Aluminum, and etc. |
