Pillow Type Horizontal Biscuit Packing Machine Cookies Chocolate Bar Flow Packaging machine

The advantage of the three servo motor automatic flow packing machine
1)Three servo motor version, high speed output, stable operation, saving time and film.

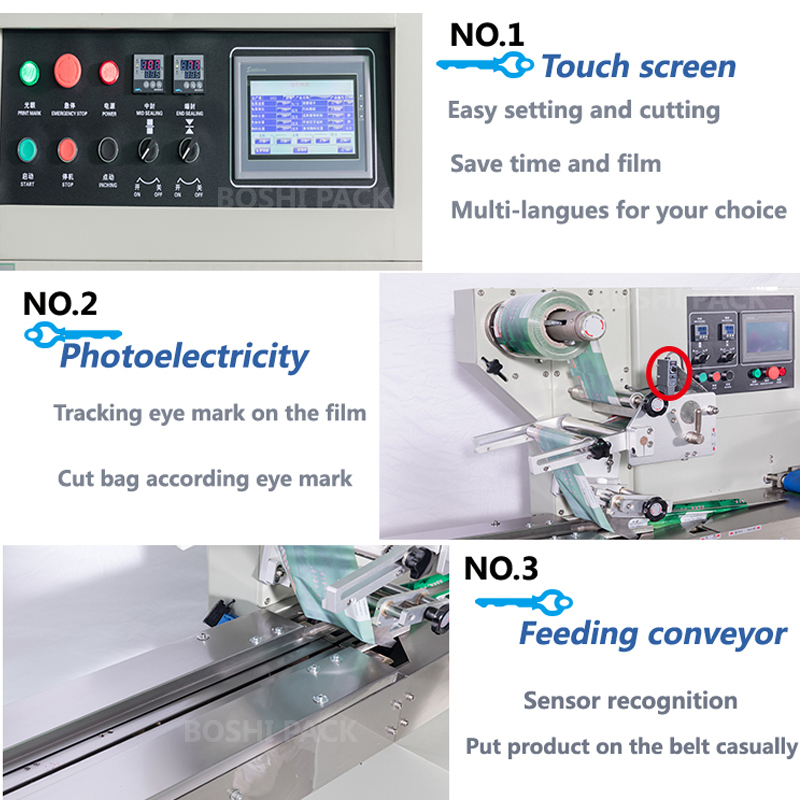

2)Interface features easy and quick setting and operation.
3)Self failure diagnosis, clear failure display.
4)High sensitivity photoelectric eye color tracing, numerical input of cutting sealing position for extra accuracy.
5)Temperature independent PID control, more suitable for packaging different materials.
6)Positioned stop function, without sticking knife or wasting film.
7)Simple driving system, reliable working, convenient maintenance.
8)All control is realized through software, easy for function adjusting and technical upgraded.

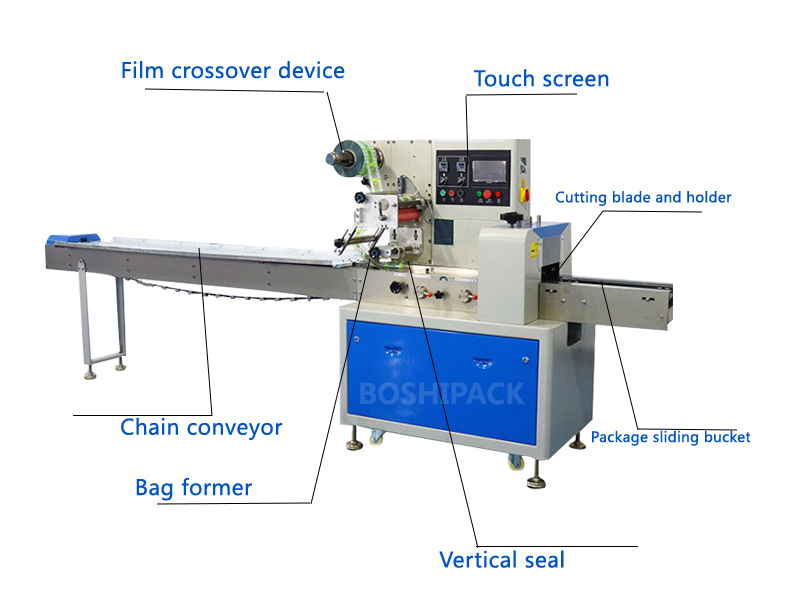

Pillow Type Horizontal Biscuit Packing Machine Cookies Chocolate Bar Flow Packaging machine




 (Automatic pillow packing machine, suitable for bakery bread packing, chocolate bar packing, sausage packing, popsicle packing, hardware packing, and etc.)











(such as laminated film, ((PET/ PE, OPP/CPP,OPP/ CE)), paper.

biscuit packing machine


Option Device






(CE, ISO, Google partner, Alibaba partner, and Chinese government certifications. )













(Standard export wooden cases.)
Model BS-250
Film width Max.250mm
Film thickness 0.03-0.1mm
Bag width 35-120 mm
Bag length 65-190 mm, 120-280mm, or 90-220 mm
Product height max. 55mm
Packing speed 40-230 bags/ min
Power 2.4 KW
Machine dimensions 3770*680*1420 mm
Machine weight 500 kg
Option devices Date printer, hole puncher, label machine
Packing film materials OPP, CPP, OPP/PE, PET/ PE, Aluminum, and etc.
