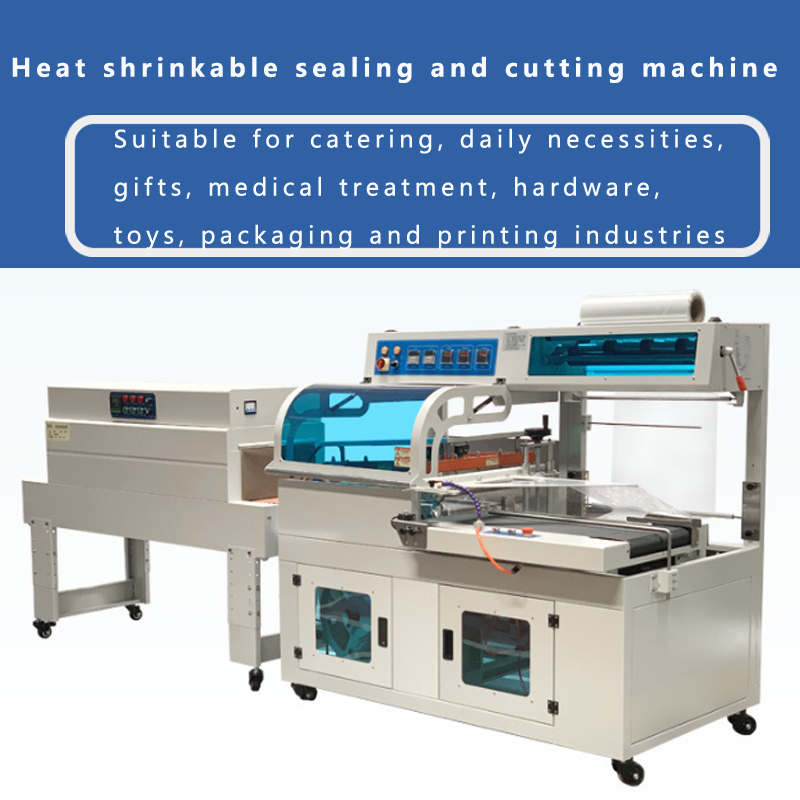

thermal shrink wrapping packing machine | Boshi pack CE automatic bottle wrap heat shrink packaging machine manufacturer
1)This machine has an imported PLC automatic program control, easy operation.
2) Safety protection and alarm function that effectively prevents incorrect packaging.
3)The machine can be connected directly with the production line, no need additional operators.
4)Positioned stop function, without sticking knife or wasting film.
5)All control is realized through software, easy for function adjusting and technical upgraded.
Boshi pack CE automatic bottle wrap heat shrink packaging machine manufacturer
Applications.

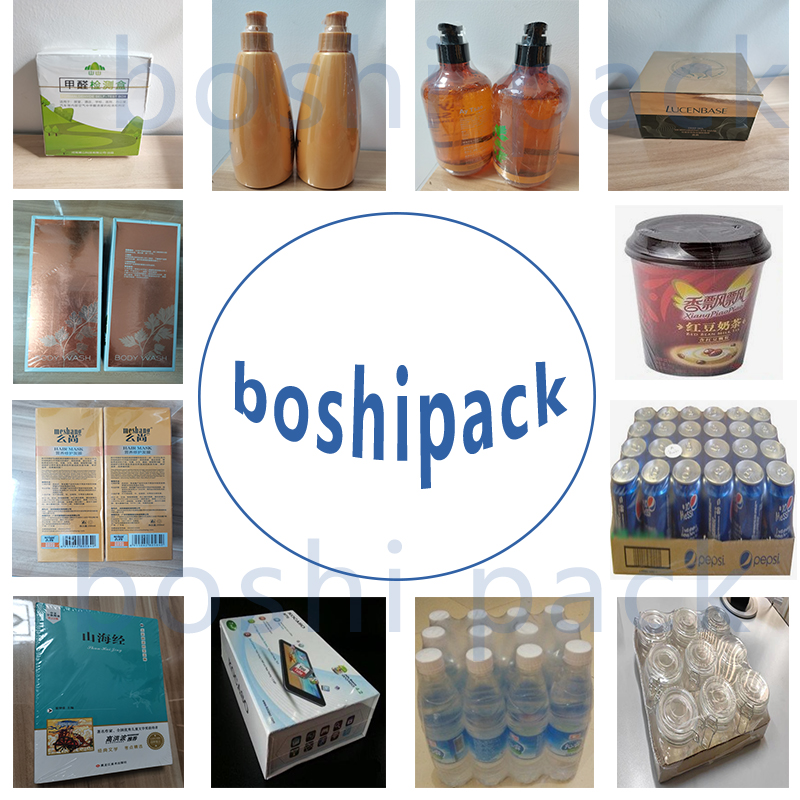

Suitable for small bottle packing, tube packing, gass bottle packing, gift box cases packing, books packing, and etc.
thermal shrink wrapping packing machine
Suitable for small bottle packing, tube packing, gass bottle packing, gift box cases packing, books packing, and etc.
thermal shrink wrapping packing machine

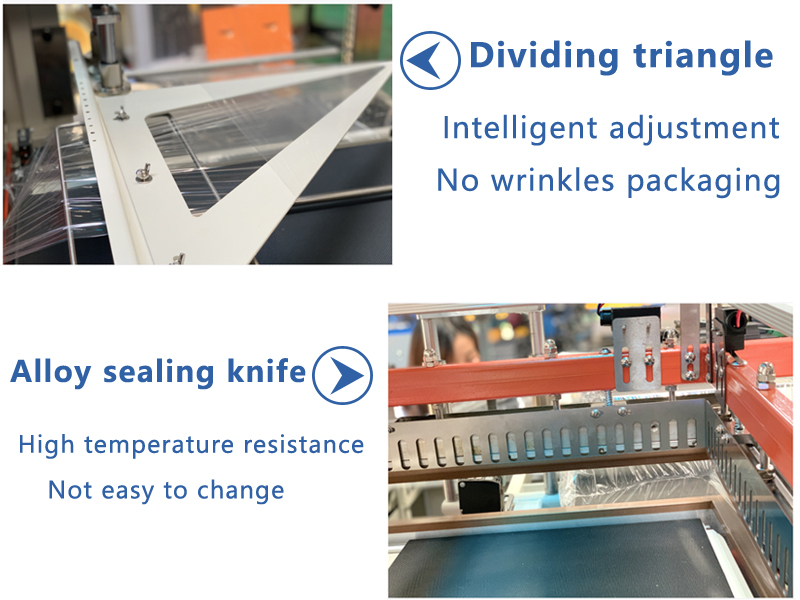

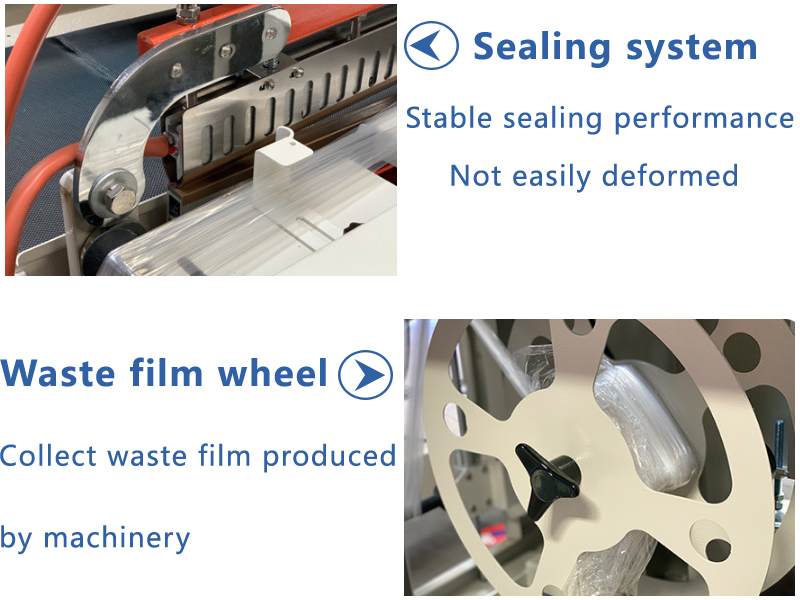

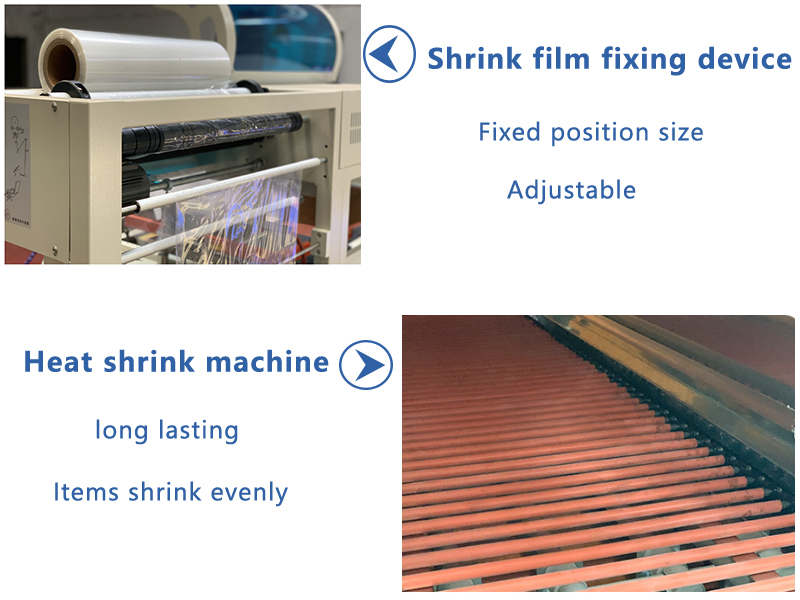

Packing machine outlook details.
Material types of roll film.
(such as laminated film, ((PET/ PE, OPP/CPP,OPP/ CE)), paper.
Certifications.
CE, ISO, Google partner, Alibaba partner, and Chinese government certifications.
CE, ISO, Google partner, Alibaba partner, and Chinese government certifications.
Packing and Shipping.
(Standard export wooden cases.)
(Standard export wooden cases.)
| Model | BS-350 |
| Max height | <150 mm |
| Max width | (W+H)<400 mm |
| Max length | (L+H)<500mm |
| Cutting size | 550*450 mm |
| Capacity | 15-30 package/ min |
| Applicatioons | POF/PE |
| Film shrinked | 60% |
| Table height | 780 mm (adjusted) |
| Power | 1.35 KW |
| Voltage requirement | 240V, 50/60 Hz |
| Air pressure | 0.5-0.7 Mpa |
| External dimensions | 1650*800*1450 mm; |
| Gross weight | 300 kg |
| Wooden packed size | 1850 * 1000 * 1650 mm |
