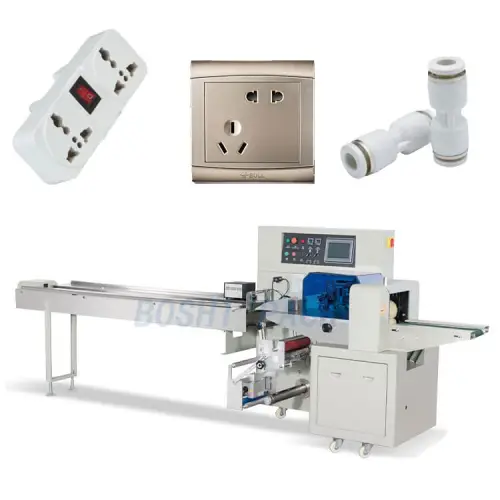

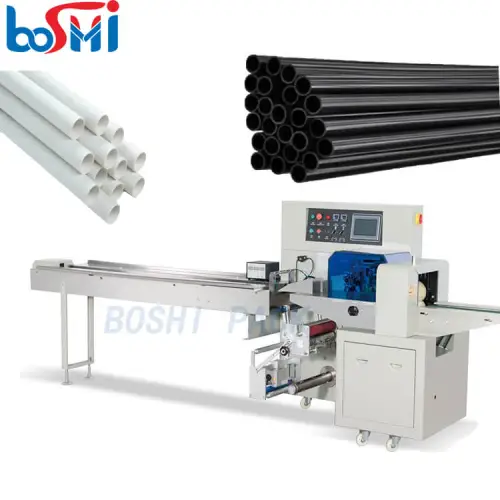

Tube pipe hardware packing machine wire foil aluminum profile wrapping machine hardware belt rope tape cone strip polybag packing machine

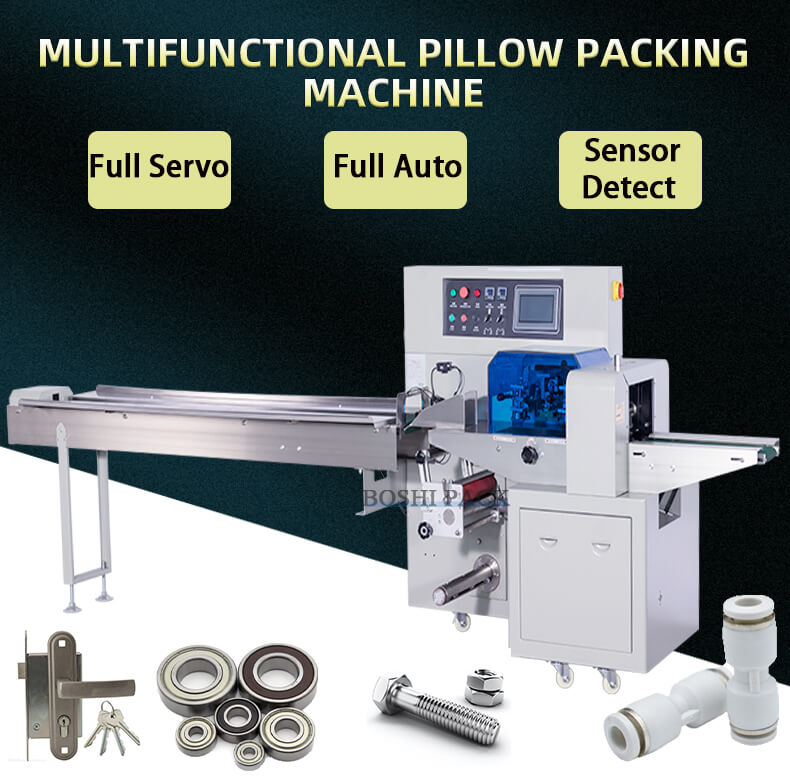

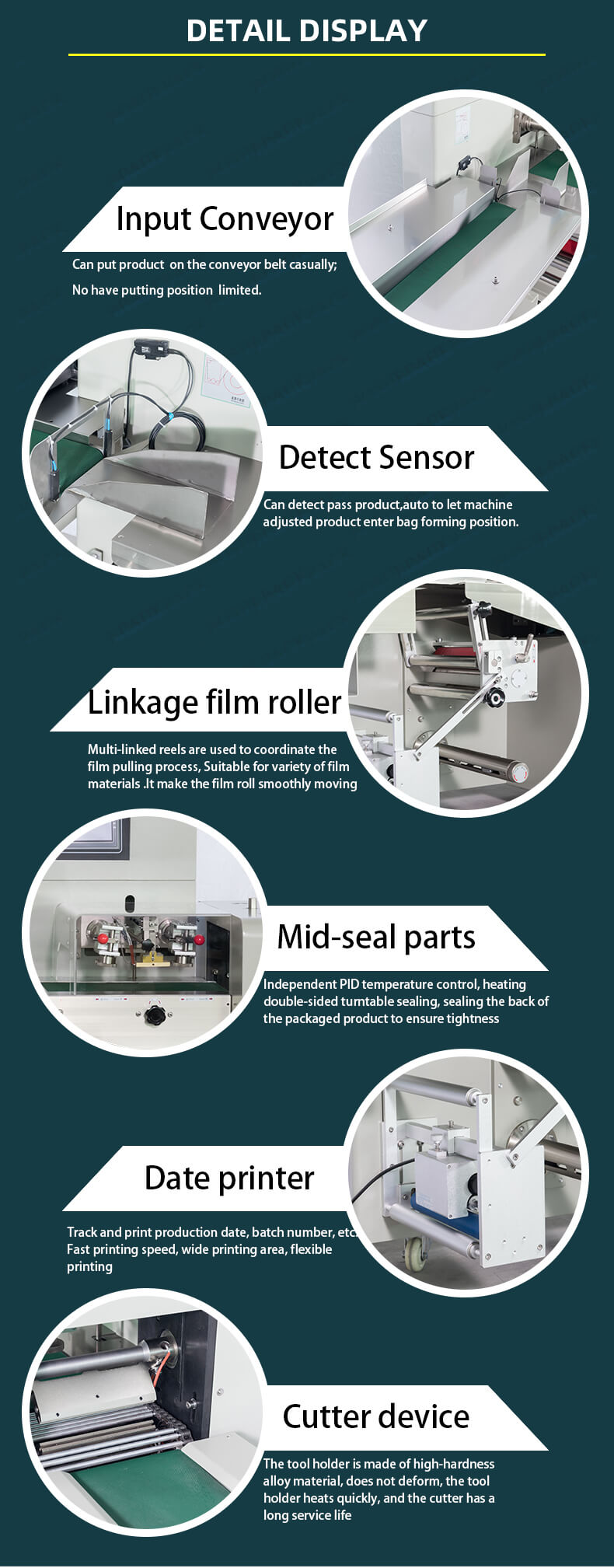

The advantage of three servo motor of the automatic package machinery
1)Three servo motor version, high speed output, stable operation, saving time and film.
2)Interface features easy and quick setting and operation.
3)Self failure diagnosis, clear failure display.
4)High sensitivity photoelectric eye color tracing, numerical input of cutting sealing position for extra accuracy.
5)Temperature independent PID control, more suitable for packaging different materials.
6)Positioned stop function, without sticking knife or wasting film.
7)Simple driving system, reliable working, convenient maintenance.
8)All control is realized through software, easy for function adjusting and technical upgraded.



Tube pipe hardware packing machine wire foil aluminum profile wrapping machine hardware belt rope tape cone strip polybag packing machine









​​​​​​

Model BS-350X BS-450X BS-600X
Packing speed 20-180 Bags/min 30-150 Bags/min 30-150 Bags/min
Support bag size L(65-330)×W(50-165)×H(5-60)mm L(130-450)×W(50-215)×H(5-75)mm L(130-450)×W(50-215)×H(5-75)mm
Bag type Pillow bag(back seal) Pillow bag(back seal) Pillow bag(back seal)
Film width ≤350mm ≤450mm ≤600mm
Film thickness range 30-80um 30-80um 30-80um
Power 220V 50HZ,2.6KW 220V 50HZ,2.8KW 220V 50HZ,3KW
Motor configuration Full servo motors Full servo motors Full servo motors
Cutter moving type Rotary cutter Rotary cutter Rotary cutter
Machine color White/Red/Blue White/Red/Blue White/Red/Blue
Machine material Frame-carbon steel,contact parts--stainless steel SUS304 Frame-carbon steel,contact parts--stainless steel SUS304 Frame-carbon steel,contact parts--stainless steel SUS304
Feeding conveyor Chain /belt/pusher Chain /belt/pusher Chain /belt/pusher
Machine dimension 3770*770*1450 mm 4020*820*1450 mm 4020*920*1450 mm
Machine weight 580 kg 680 kg 750 kg
