vegetable packing machine | Boshi Pack CE automatic flow pack machine for food vegetable

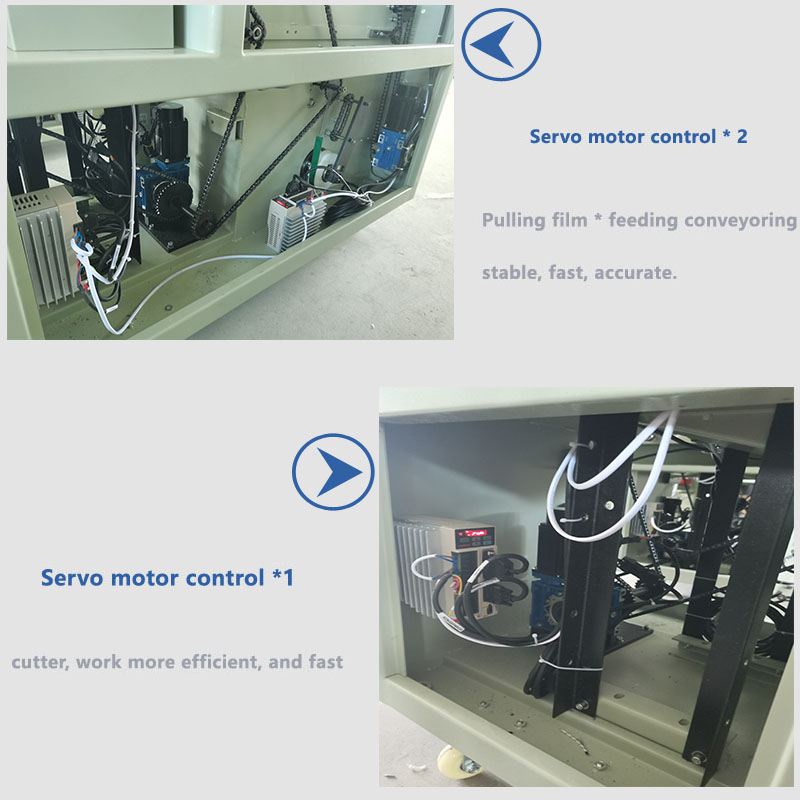

The advantage of three servo motor of automatic vegetables flow pack machine
1)Three servo motor version, high speed output, stable operation, saving time and film.

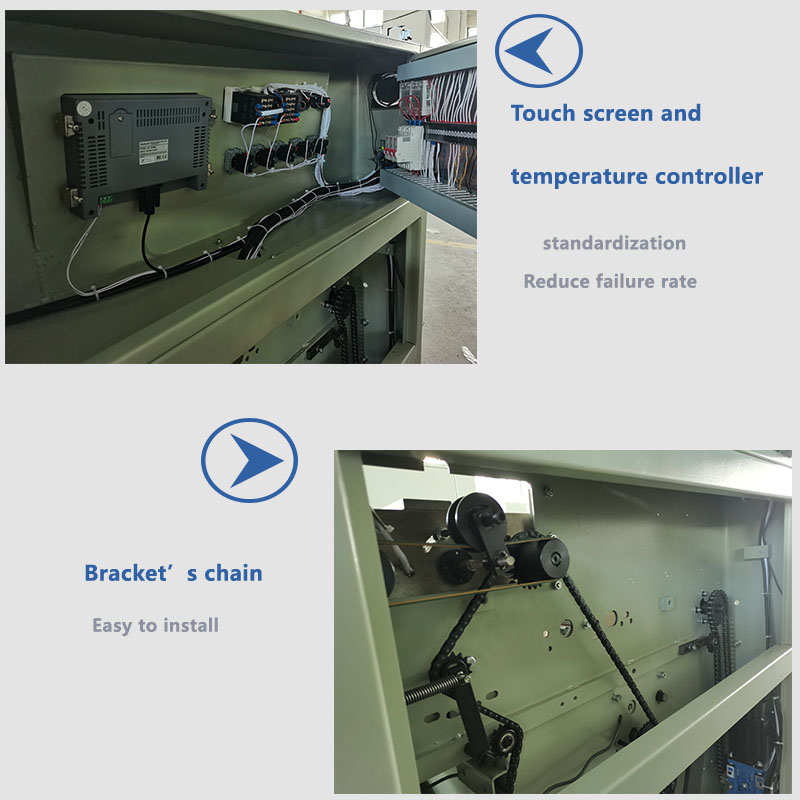

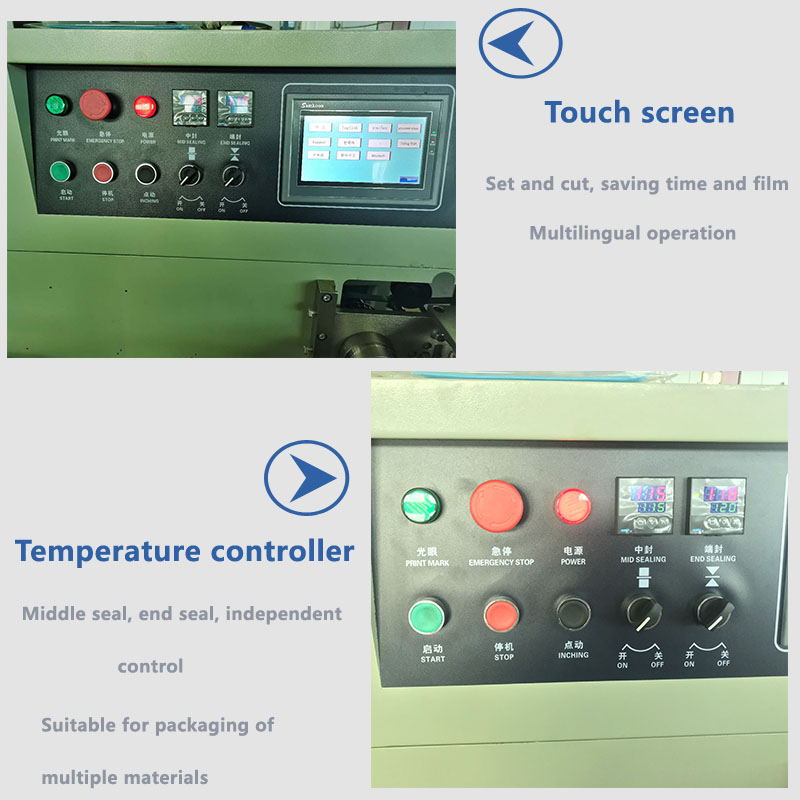

2)Interface features easy and quick setting and operation.
3)Self failure diagnosis, clear failure display.

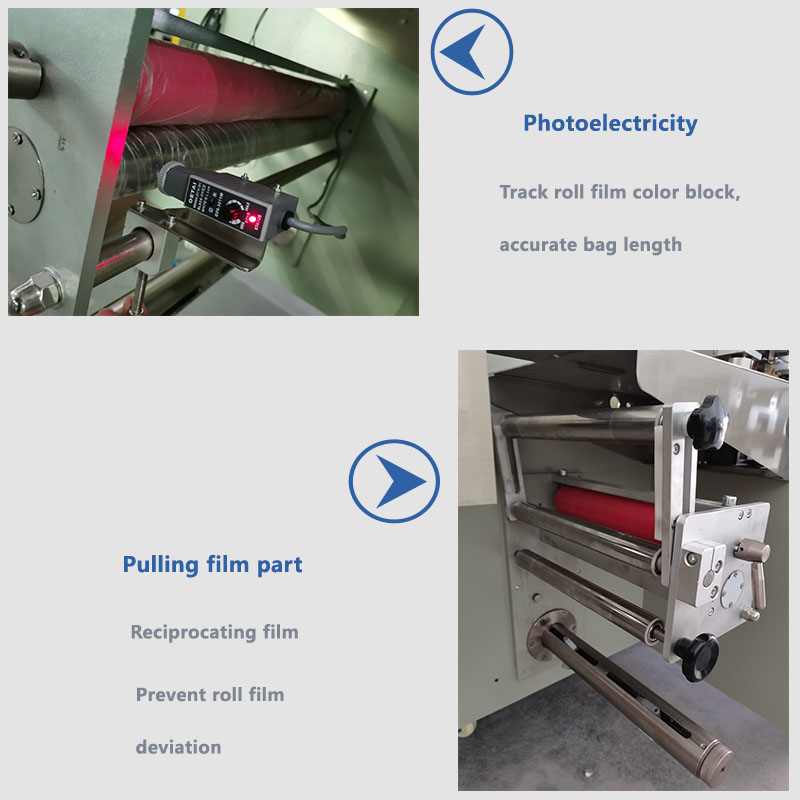

4)High sensitivity photoelectric eye color tracing, numerical input of cutting sealing position for extra accuracy.
5)Temperature independent PID control, more suitable for packaging different materials.
6)Positioned stop function, without sticking knife or wasting film.
7)Simple driving system, reliable working, convenient maintenance.

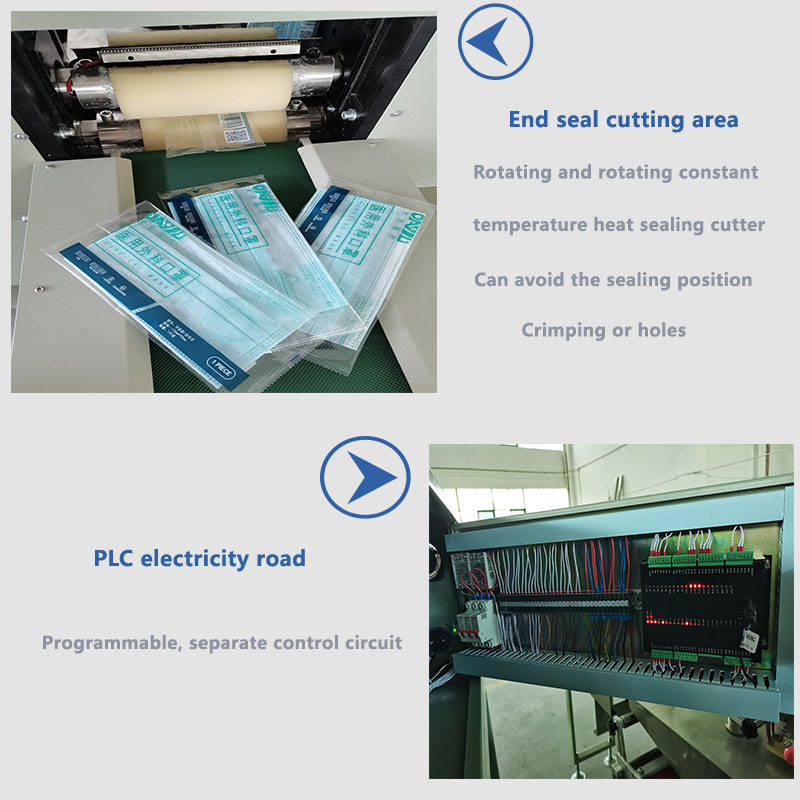

8)All control is realized through software, easy for function adjusting and technical upgraded.

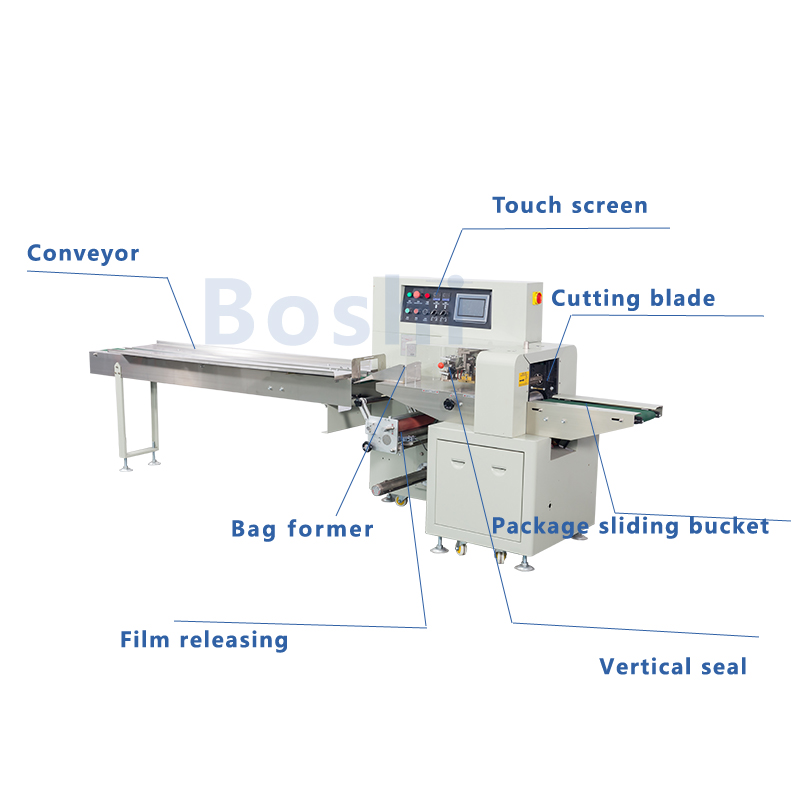

Boshi Pack CE automatic flow pack machine for food vegetable





vegetable packing machine




vegetable packing machine
The advantage of three servo motor of automatic vegetable packing machine.
300x200 vegetable packing machine

300x200 vegetable packing machine

300x200 vegetable packing machine

300x200



300x200






(Pillow packing machine, suitable for vegetables, chocolate bar packing, sausage packing, and etc.)






Material types of roll film.
(such as laminated film, ((PET/ PE, OPP/CPP,OPP/ CE)), paper.






Packing and Shipping.
(Standard export wooden cases.)
Model BS-350X
Film width Max.350mm
Film thickness 0.03-0.1mm
Bag width 50-160 mm
Bag length 65-190 mm, 90-220mm, or 150-330 mm
Product height 40-60 mm
Packing speed 40-180 bags/ min
Power 2.6 KW
Machine dimensions 4020*770*1450 mm
Machine weight 680 kg
Option devices Date printer, hole puncher, label machine
Packing film materials OPP, CPP, OPP/PE, PET/ PE, Aluminum, and etc.
